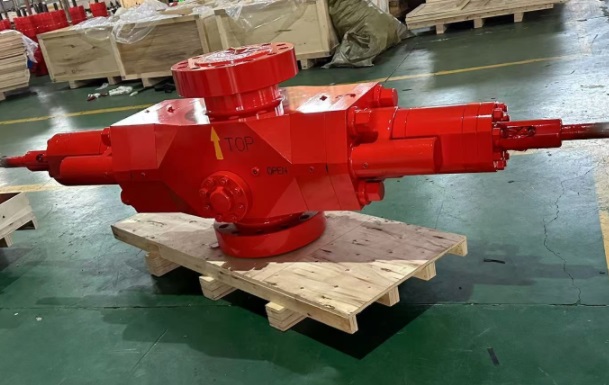

Cameron U type Ram BOP

The Cameron U BOP blowout preventers are the most widely used ram-type BOP for land, platform (platform rigs) and subsea applications worldwide and offers the widest range of sizes of any Cameron ram-type BOP.

• Hydraulic stud tensioning is available on larger sizes to ensure that stud loading is consistently accurate and even.
• A bonnet seal carrier is available to eliminate the need for high makeup torque on bonnet studs and nuts.
• Hydraulically operated locking mechanisms, wedge locks, lock the ram hydraulically and hold the ram mechanically closed even when actuating pressure is released. The operating system can be interlocked using sequence caps to ensure the wedge lock is retracted before applying pressure to open the BOP.
• For subsea applications, a pressure balance chamber with wedge locks eliminates the possibility of the wedge lock becoming unlocked due to hydrostatic pressure.
• Other features include hydraulically opening bonnets, forged body and a wide selection of rams to meet all applications.

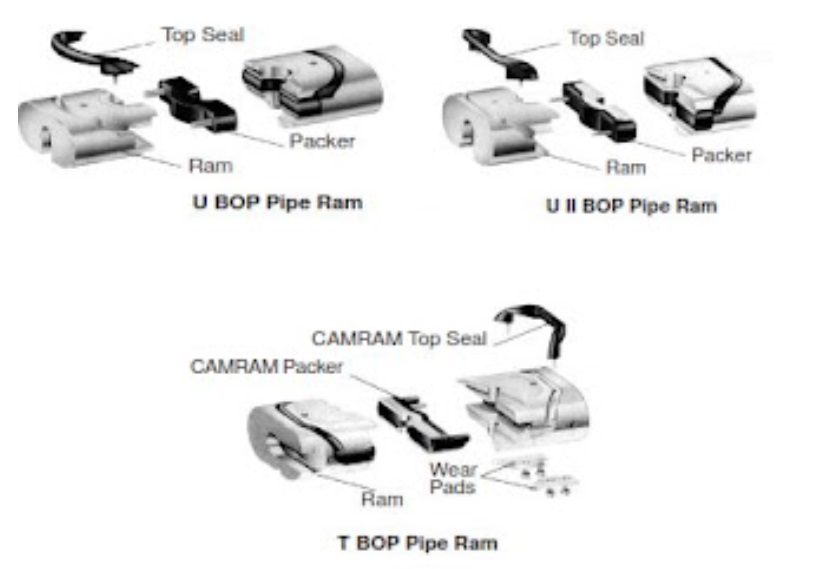

Cameron pipe rams are available for use in Cameron ram-type BOPs to fit all commonly used sizes of tubing, drill pipe, drill collar or casing pipe.

• Cameron pipe rams are self-feeding and incorporate a large reservoir of packer rubber to ensure a long-lasting seal under all conditions.
• Ram packers lock into place and are not dislodged by well flow
• All Cameron pipe rams are suitable for H2S service per NACE MR-01-75.
• CAMRAM™ top seals are standard for all Cameron pipe rams (except U BOPs larger than 13 3/4″)

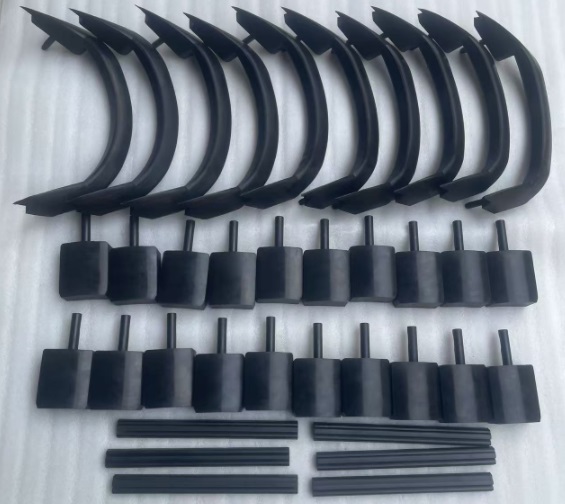

• CAMRAM 350™ packers and top seals are available for high-temperature service and for service in which concentrations of H2S are expectWe can do the same spare as below packer and Ram Assembly

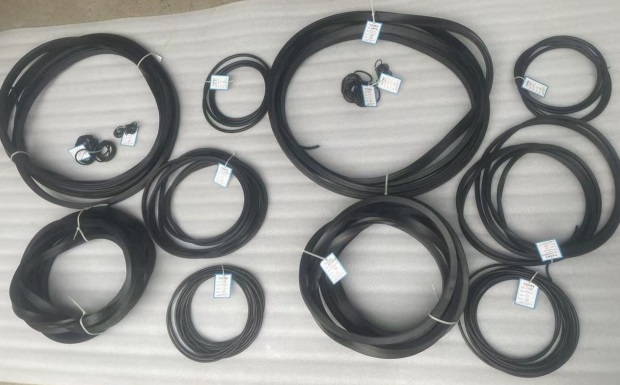

• 644197-03-00-01bonnet seal,
• 644223-01-00-01 top seal
• Rebuild kit for Bonnet 13 5/8-5M U BOP 644909-03

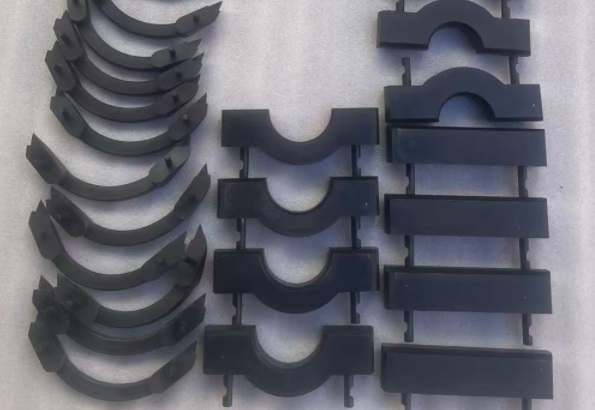

• Packer 4 1/2 OD pipe 13 5/8-5M U BOP 644224-11-00-01
• Packer 5 OD pipe 13 5/8-5M U BOP 644224-14-00-01
• blind packer  13 5/8-5M U BOP 644224-01-00-01

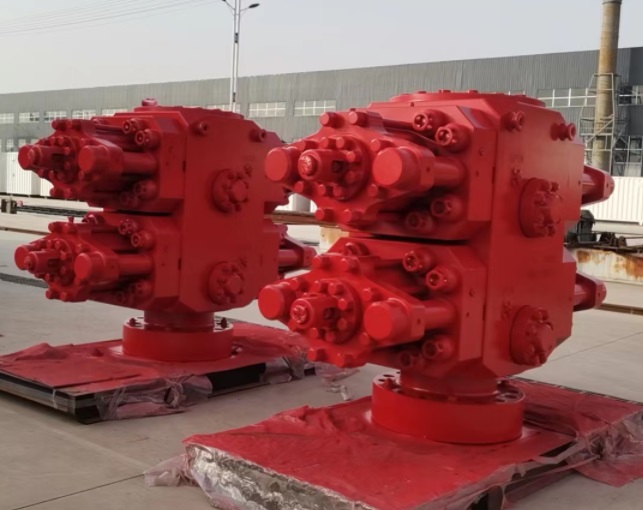

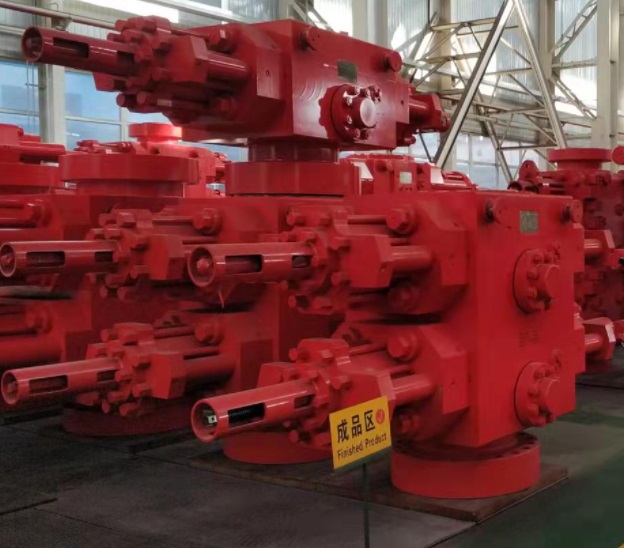

• Rongsheng BOP spare as below:
• FZ35-35 P/N: RS11902
• 2FZ35-35 P/N: RS11903

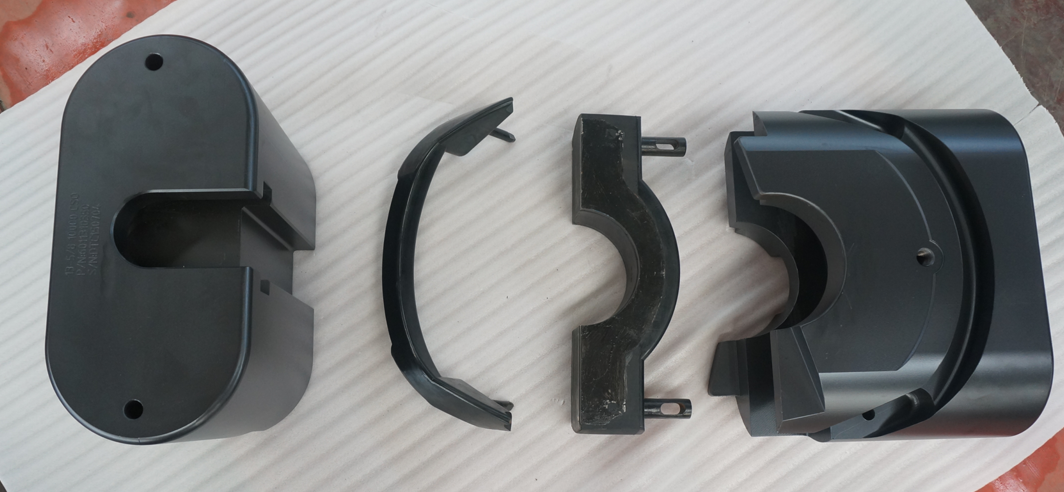

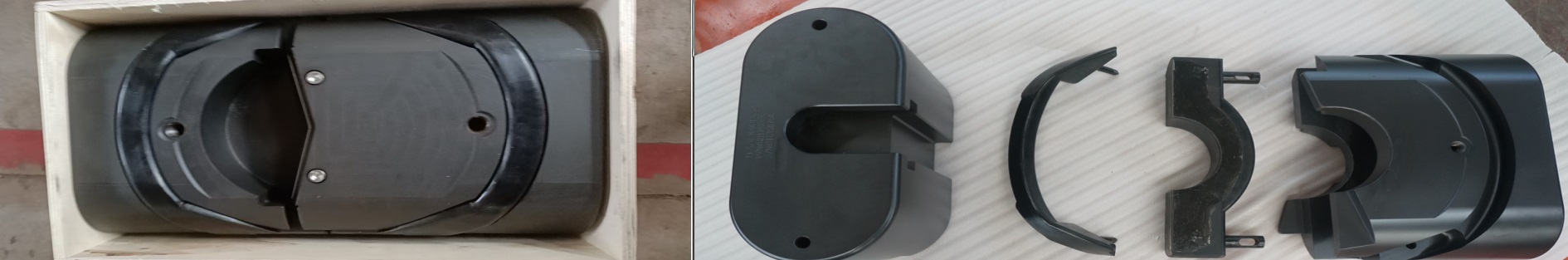

• RS11816.07.01.00  RS11816.07.01.03blind Ram assembly
• RS11816.07.06.00 RS11816.07.06.03 5"pipe ram assembly
• FZ35-70 P/N: RS11894
• 2FZ35-70 P/N: RS11895
• RS11816.07.01.00 blind ram assembly
• RS11816.07.06.00 5"Ram assembly
• RS11816.07.01.01
• RS11187.10.05A
• RS11816.07.10.01
• RS11816.07.10.02
• RS11816.07.10.03
• RS11816.07.10.04 Blind shear Ram Assembly
•

• Who can produce these Cameron U type Ram,Rongsheng U type,Shenkai U type Ram
• Tianjin Dongrui Petroleum Machinery Co.,Ltd
•

•


FAQ

1. Who are you?

Tianjin Dongrui Petroleum Machinery Co.,Ltd. are integrated oilfield equipment  solution provider. We produce Rongsheng（HRSB） brand BOP spare，Varco Top drive spare,Chinese brand TDS spare,ESP cable penetrator.

2. Why should we buy from you?
a. Competitive price

b. Quick delivery

c. Worry free after-sales service. Refund or sending new goods if quality issues can't be resolved by after-sales service.

3. Is after-sale service available to your products?
Yes, we have professional after-sale service team which will offer you the site commissioning service. Engineers are available to be abroad for service.

4. What is your warranty policy?
We offer 12 months limited warranty for complete set of equipment or machinery.

5. What is the delivery time for your product?
Generally, ready stock for commonly used parts, Mud Pump unit ,Rongsheng（HRSB）and complete equipment depends upon technical configuration.

6.What is the material

Rubber: HNBR or NBR   Steel:4130  4140 25CrNiMo
