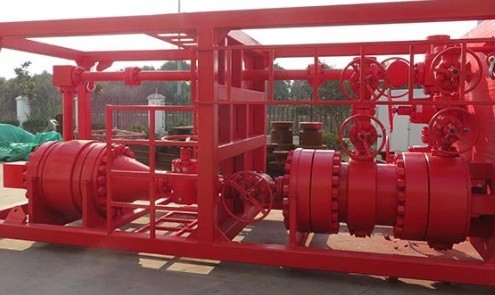

Wellhead Desander

Wellhead Desander

A wellhead desander is a special mechanical device used to separate solids from a well stream and protect upstream equipment such as high and low pressure separators, valves, and gauges.A wellhead desander is a special mechanical device used to separate solids from a well stream and protect upstream equipment such as high and low pressure separators, valves, and gauges. It is designed and manufactured in accordance with API standards for carbon or low alloy steel. It separates sand/solids from the well stream by applying gravity. The machine is widely used in oilfield rejection, cleaning, well testing and oil and gas production.

The cyclone tube of the wellhead desander works by pressure drop. When the multiphase fluid enters the cyclone, the fluid and solid particles rotate under the action of centrifugal force. This powerful force separates liquids from solids. The heavier solids move outward toward the cyclone wall, while the lighter liquid and gas phases move in the opposite direction toward the center of the cyclone.

The pressure rating of Wellhead Desander

Through independent research and development, we have successfully optimized the cyclone self-weighted desanding efficiency to an impressive 97%. This cutting-edge technology has been well received by both domestic and international customers after being used at the wellhead site. The fact that we have a very high repurchase rate is a testament to the outstanding performance of our products.

Transportation is made simple and hassle-free with horizontal and vertical lug devices. The Flow Line Cutter Deluxe can be easily transported and repositioned as needed to optimize jobsite efficiency and flexibility.

The Flow Line Cutter Deluxe is equipped with a high-capacity sand storage tank to ensure that you can handle the most demanding projects without interruption. Additionally, we've included a convenient washout port that makes it easy to rinse away any sand residue. No more wasting valuable time and resources on complicated cleaning processes!

The Flow Line Cutter Deluxe is API6A compliant for temperature, material and PSL ratings, giving you peace of mind.

Whether you're looking to improve the efficiency of your wellhead operations or simply seeking a reliable sand removal solution, the Flow Line Cutter Deluxe is the ultimate choice. Its unrivaled performance, high customer satisfaction and top-of-the-line features make it an industry rule changer. Don't miss this opportunity to revolutionize your workflow and increase your productivity. Choose Flow Line Cutter Deluxe today and experience the difference it can make to your business.

●5000 psi (35 MPa)

●10000 psi (70 MPa)

●15000 psi (105 MPa)

Sizing of Sand collection Chamber

●20 in. x 8 ft.

●24 in. x 8 ft.

●26 in. x 8 ft.

●28 in. x 8 ft.

●24 in. x 10 ft.

●26 in. x 10 ft.

●28 in. x 10 ft.

Code & Standards

●ASME Ⅷ Div.1/2

●API 6A

●ASME B31.3
