2 7/8-5 4 1/2-7VBR Ram assembly
2 7/8-5 4 1/2-7VBR Ram assembly
644228-03-00-01 2 3/8 pipe Ram assembly
644228-05 3 1/2 pipe Ram assembly
644228-11-00-03 5 pipe Ram assembly

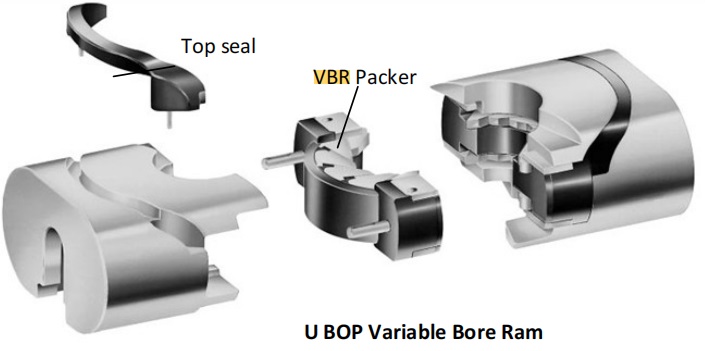

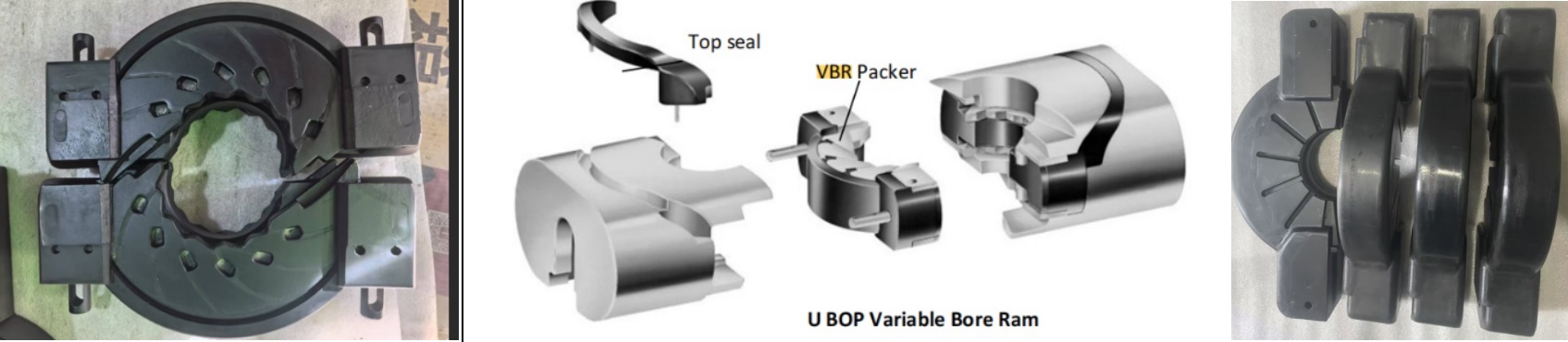

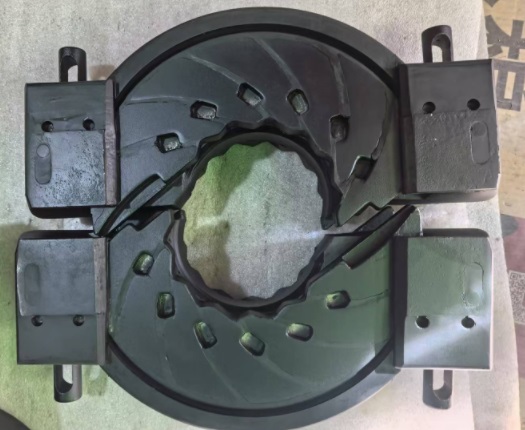

The Cameron VBR-II is the next generation of highly popular Cameron variable bore ram (VBR) packer. The VBR-II accommodates arange of pipe sizes and may be used in existing Cameron variable bore rams. The VBR-II
seals on a range of drill pipe sizes as well as hexagonal kellys and provides uniform sealing pressure with virtual elimination of extrusion paths.
As indicated in the chart below, the VBR-III is the standard VBR in most common sizes. In sizes where the VBR-II
is not specified in the chart, the popular Cameron VBR is the standard offering. VBR-II packers for other size
BOP’s and other pipe size ranges are available upon request.
13-5/8" 3,000, 5,000 and 10,000 VBR-II
7" to 4-1/2" 046675-01-00-02
5-7/8" to 3-1/2" 2164664-01
5-1/2" to 3-1/2" 2163945-01
5" to 2-7/8" 645166-02
RS11816.07.12.00
RS11816.07.13.00
2 7/8″～5
4 1/2″～7
RS11816.07.14.00
3 1/2″～5 1/2″
Who Can produce these spare part VBR
TIanjin dongrui Petroleum Machinery Co.,Ltd
rubber:NBR steel:4130 or 25CrNiMn
