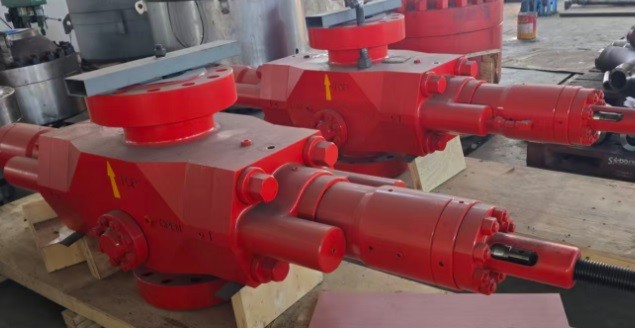

Cameron U type Ram BOP with booster cylinder

Cameron U type Ram BOP with booster cylinder

Cameron BOP BOP is the most widely used Around the world, which can be applied to the land rigs, the platform rigs, the bottom of the sea. Cameron blowout preventer has the largest application size range, size from 7-1/16 "to 26-3/4", work pressure from 5000 to 15000 psi. Currently provided by the major products are U, UII and UM of ram blowout preventer, T and TL series of ram blowout preventer, and DL annular bop.

Cameron ram blowout preventer

U type ram blowout preventer

U type ram blowout preventer ram for the pressure self tightening type. Wellbore pressure acting on the door, improves the sealing force, and the pressure loss in hydraulic conditions to maintain seal seal. Seal integrity in fact with the wellbore pressure increases.

Size and working pressure are as follows:

7 1/16 "1/16" 15000 psi 3000

11 "3000 - 11" 15000 PSI

13 5/8 " 15000 psi 3000PSI 5000PSI 10000PSI

16 3/4 " 10000 psi 3000 PSI

18 3/4"-5000PSI 10000PSI

20 3/4 " 3000 psi 2000 PSI

U II ram blowout preventer

Almost all the characteristics of Cameron U II type blowout preventer with U type blowout preventer, and applies them platform rigs. Size and working pressure of 18-3/4 10000 and PSI 15000 ".

UM ram blowout preventer

Cameron type UM BOP BOP light is designed for convenient repair and prolong the service life. UM type blowout preventer perfect prior U type blowout preventer, including the use of preventer can prevent the valve in any equal size U type cover. UM type blowout preventer with single valve cover, can be converted in shear and pipe model.

Size and working pressure are as follows:

7-1/16 "13-5/8", 11 ", 3000, 5000, 10000, 15000 PSI

16-3/4 "3000, 5000, 10000 psi

20-3/4 3000

21-1/4 "2000, 5000, 10000 psi

26-3/4 3000

In the Cameron DL of annular blowout preventer of unique design, closing pressure forces the piston and push board operation replaces the solid elastomer ring upward, inward closing force rubber core. Because the rubber core off, steel reinforced insert inward rotation on the formation of the rubber core top and bottom continuous support. Whether the rubber core open closed in a tube or opening, insert between the strengthening contact each other.

Dimensions and working pressure:

7-1/16 "~21-1/4", 2000~20000 PSI
