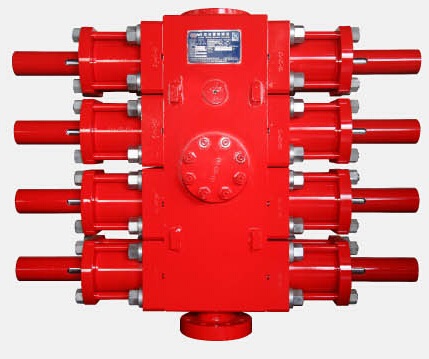

Quad coiled tubing BOP

Quad coiled tubing BOP

3 1/16"-10K  and 4 1/16"-10K Quad  BOP is designed for protection against blowouts for coiled tubing operations, The BOP can rapidly shut of the wel during over flow,

Recommended hydraulic oil:General areas: Mobil DTE10 excel 32# (Applicable minimum ambient temperature is-40 with heater and 'C -20 'C without heater.)Tropical areas: Mobil DTE25# (Applicable minimum ambient temperature is -40 °Cwith heater and -20 without heater.)°C
If the working temperature is lower than the rated temperature, please contact us.Certification Testing-All BOPs are hydrostatic and function tested as per AP| 16A. H2S Service - Materials in contact with pressured well fluids conform to NACESpecification MR-01-75 for H2S Service.I Arctic Service -All essential parts are conducted Charpy impact test at -75°F as perAPI 16A.
Operation& Maintenance
1.1 AssemblyCorrect assembly is very important for proper operation of equipment. The top andbottom flange stud must be tightened. Please use studs and nuts of specified gradefor H2S service as per AP| 6A, Use new washers that meets APl 6A and tiahten withproper torque.
1.2 Hydraulic Connection Connect the hydraulic piping that drives actuators to the hydraulic coupler in the front of the BOP to make sure the hydraulic piping of each actuator match indicators on thecontrol panel. Marking each hydraulic piping or using different kinds of couplers is recommended.
