FKQ640-6 BOP Control system accumulator

FKQ640-6 BOP Control system Pneumatic Control Systems Manufacturers

We are a leading pneumatic control systems manufacturers.Our company specializes in the design and production of high-quality systems that use compressed air to control various mechanical processes. With years of industry experience and skilled engineers and technicians, our customers provide reliable, efficient and cost-effective solutions to meet their unique needs and requirements.

 Pneumatic Control Equipment

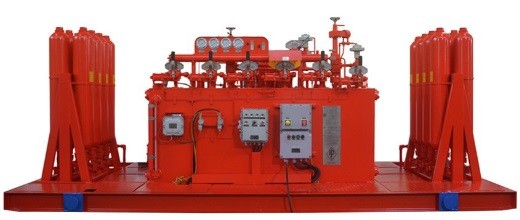

This FKQ640-6 is a pneumatic control equipment, which is composed of a control valve that regulates the flow of compressed air or gas and various pneumatic actuators that convert the pressure of air or gas into mechanical motion. Pneumatic control equipment is superior to other types of control systems because it is reliable, easy to maintain and can be used in hazardous environments. It is also relatively inexpensive compared to other control systems, making it a cost-effective solution for many applications.

Configurable Options

Nitrogen backup system

 Data collection and logging

 System operation and health monitoring

The control systems for surface-mounted BOP stacks are used to open and close Blowout Preventer and Choke Valve while drilling oil and gas well.
Its main function is to prevent blowout accidents in drilling operation, so it is an indispensable equipment to ensure safe
operation in oil fields.

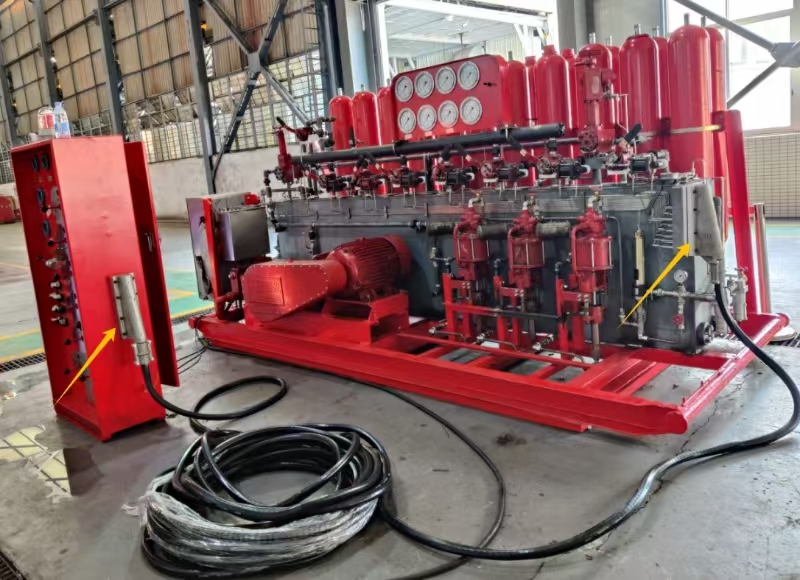

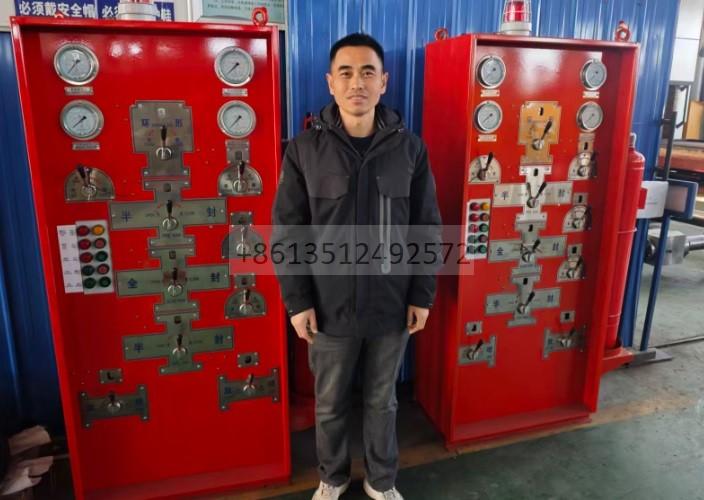

The control system for surface-mounted BOP stacks mainly consists of Remote Control Panel, Driller Control Panel, Air Cable, Pipe Racks High-pressure Pipe and Protection House. Its design and manufacture follows SY/T5053.2 standard, and refers to API Spec 16D specifications.

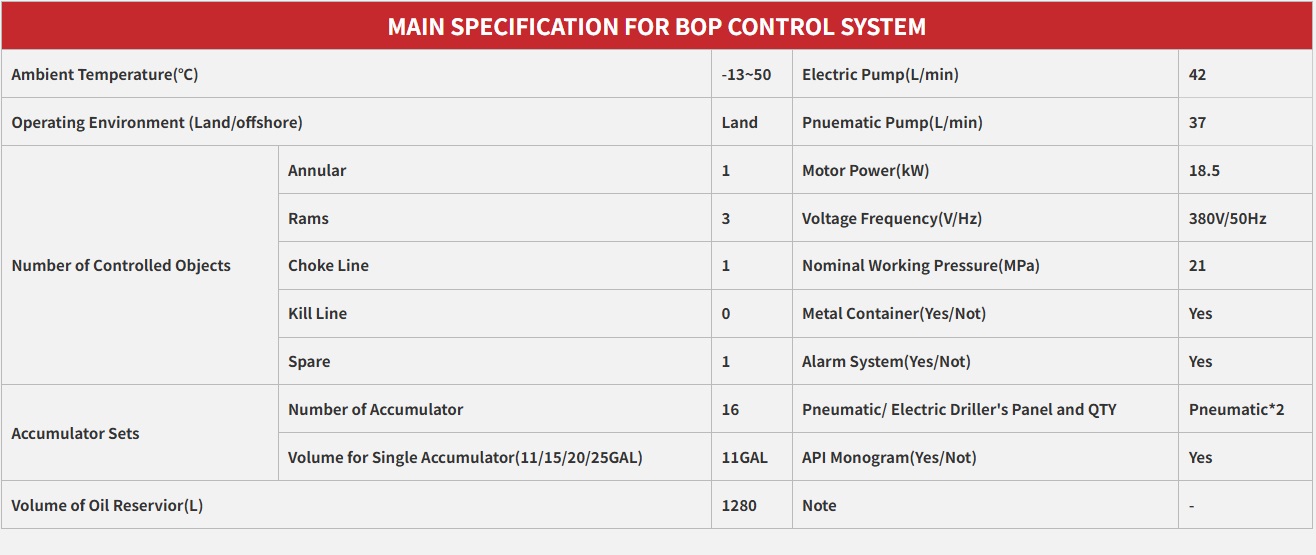

Specification:
1, The Remote Control panel is equipped with both electric pneumatic power, as well as a stand-by inlet for pressing oil to ensure the system working regularly even under unexpected situations.
2, The power system is equipped with automatic control system and double protective device against overload pressure for hydraulic system. The operation is easy, safe and reliable.
3, With four sets of accumulators, the system can work regularly with the rest 75% volume when one of them goes wrong. A special valve equipped with the accumulator but also makes it easy for the installation and maintenance of them.
