wellhead penetrator

Wellhead penetrators are designed in Dongrui  petroleum with leading oilfield-equipment manufacturers and are available in flange and threaded-mount configurations with explosion proof Class 1, Div. 1 & 2 ratings.

 ESP Penetrator System is the ultimate solution for powering electrical submersible pumps in the oil and gas industry. It is a versatile and reliable field-attachable connector system that saves hardware costs by using a universal unit that fits most traditional, eccentric wellheads. This innovative system is designed to reduce inventory costs and complexity. It utilizes the same cable kit and assembly procedures, regardless of the penetrator length. The two-piece system is available in multiple lengths to accommodate top plate and adapter wellheads.

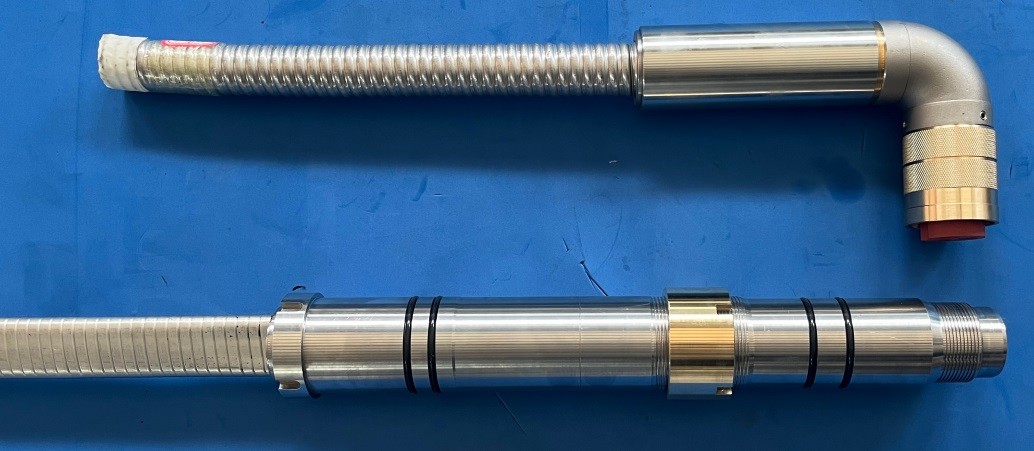

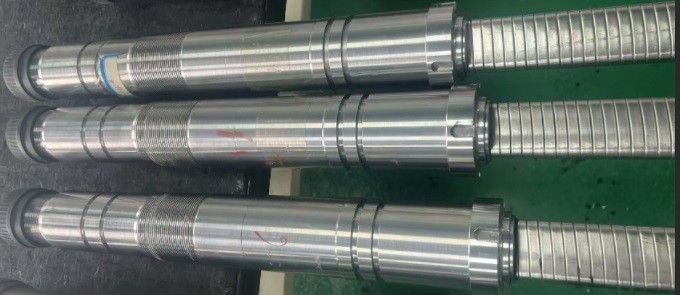

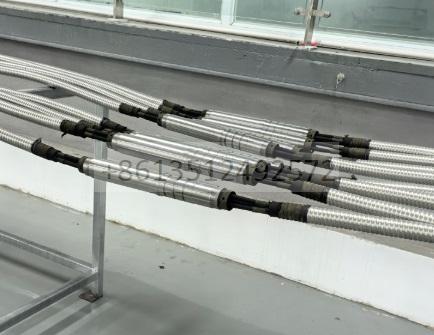

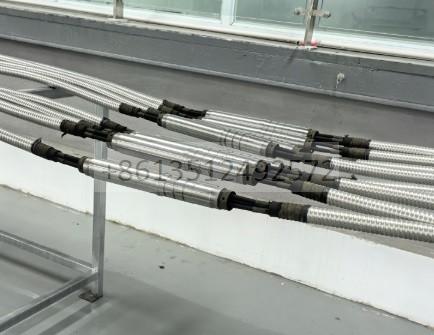

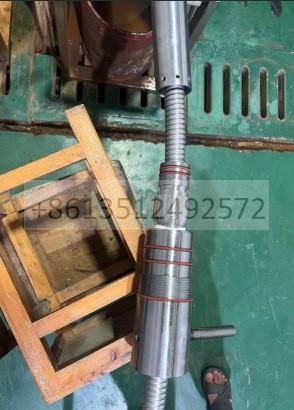

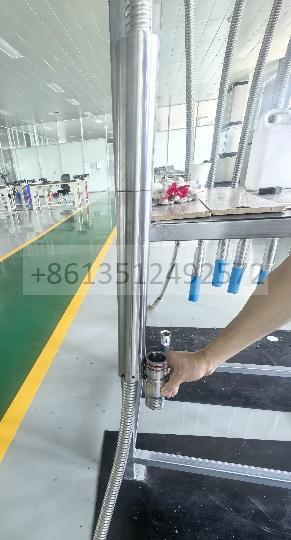

ESP cable penetrator

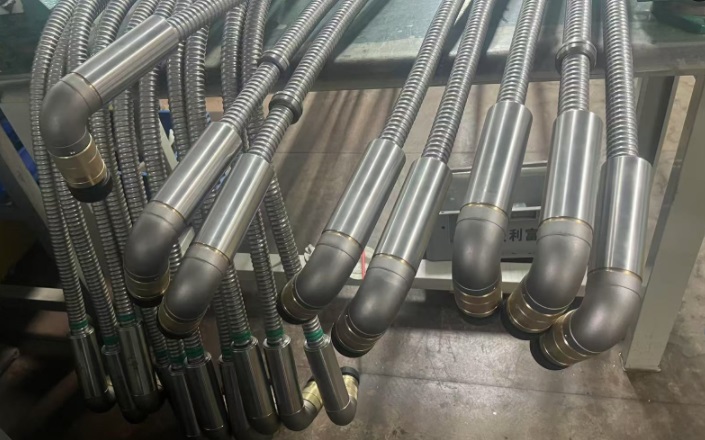

90°Surface connectorStainless steel armored 3 cores round cable I# AWG 5000V
Stainless steel armored 3cores round cable AwG 1# 5000V
125A   5000PSI

Who can Produce the ESP penetrator

Tianjin Dongrui Petroleum Machinery Co.,Ltd

What is the material of Body Penetrator

410SS or 316L  4130

What is the delivery time?

20-30days

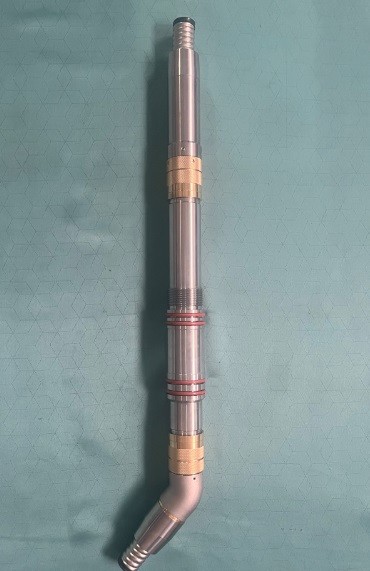

QCI type wellhead penetrator

ESP cable penetrator

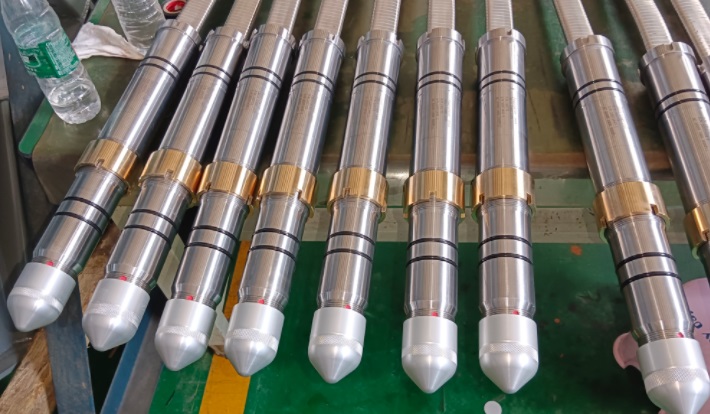

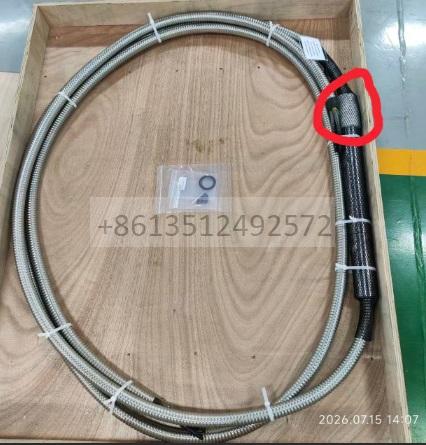

SP Packer Penetrator: Direct Molded System
1.900''NU Pin Stab in Sub (No penetrator rotation during installation)
Molded to 30ft ESP Cable (±5%), 20ft downhole, 10ft up hole,
Round, Leaded, AWG#2, EPDM, Monel Armor,
Alloy Steel NACE MRO 175 Compliant Body Material plated with Zinc or Phosphate for storage corrosion resistance.
Rated 5000PSI Hydrostatic, up to 3% H2S, up to 325°F, 5000V, 154A (amperage capacity depends on cable specifications and working conditions, please refer to cable manufacturer amperage chart)
Monel Armor is suitable for corrosive environment such as H2S
Leaded Cable is suitable for high GOR environment
Round cable better mechanical impact resistance than flat cables.
see the attachment drawing
