A "Straight Loop Chiksan" is a specific type of equipment used in the oil and gas industry for high-pressure fluid transfer. Chiksan is a registered trademark of FMC Technologies and is commonly used as a generic term for swivel joints and pup joints used in fluid handling applications.

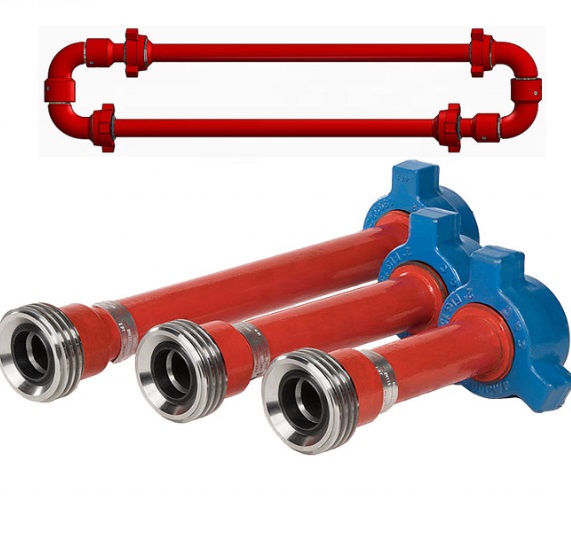

A Straight Loop Chiksan is a swivel joint designed in a straight configuration, without any bends or angles. It is used to connect two high-pressure pipelines or hoses while allowing them to rotate freely. The swivel joint enables flexibility and movement, which is particularly useful when there is relative motion between the connected components, such as during drilling operations or when equipment needs to be repositioned.
The Straight Loop Chiksan helps prevent twisting and kinking of the pipelines or hoses, which could lead to damage and potential safety hazards. It allows for smooth fluid flow and reduces the risk of leaks or failures in the transfer lines, especially in dynamic and challenging operating conditions.

These Chiksan swivel joints are commonly used in the oil and gas industry for applications such as well testing, cementing, fracturing, and various other high-pressure fluid handling tasks. They come in various sizes and pressure ratings to accommodate different operational requirements. Regular maintenance and inspection are essential to ensure the safe and efficient functioning of the Straight Loop Chiksan and other similar fluid handling equipment.

Application:
Suitable for HP discharge pipelines, water supply lines, well test lines, cementing slurry lines and other HP supply lines.

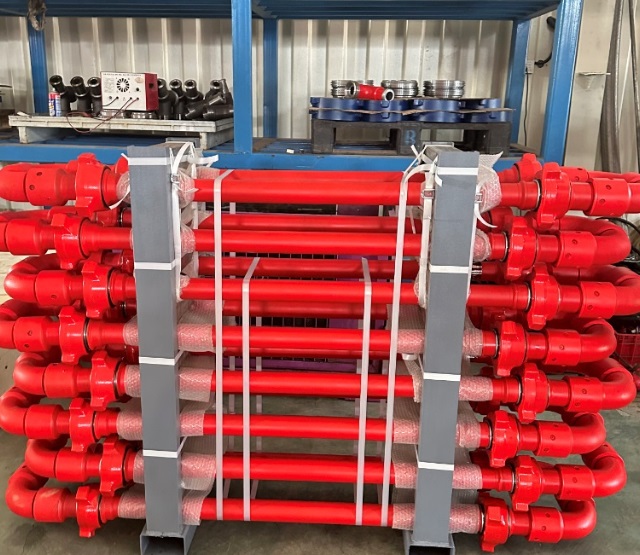

Composed of swivel joints and straight pipes, and featured by flexibility , stability, quick installation and easy dismantling
Available type: short radius flexible manifolds, long radius flexible manifolds and integral type flexible manifolds
Available sizes: 1-1/2",2",3",4"
Pressure rating: 5000PSI - 15000PSI
Feature:
1) Easily connected with pumps or other pipes with unions.
2) Excellent flexibility, shock-resistance, vibration-resistance and large displacement.
3) Connected with wing unions
4) Excellent sealing performance
5) Easily and quickly tightened or dismantled
