Swivel Joints

Product Item : 122
Category： Pneumatic pipe spinner SSW40
Swivel Joints
Swivel Joints manufacturer
INQUIRY EMAIL

Product Detail

Product Tags

Product Videos

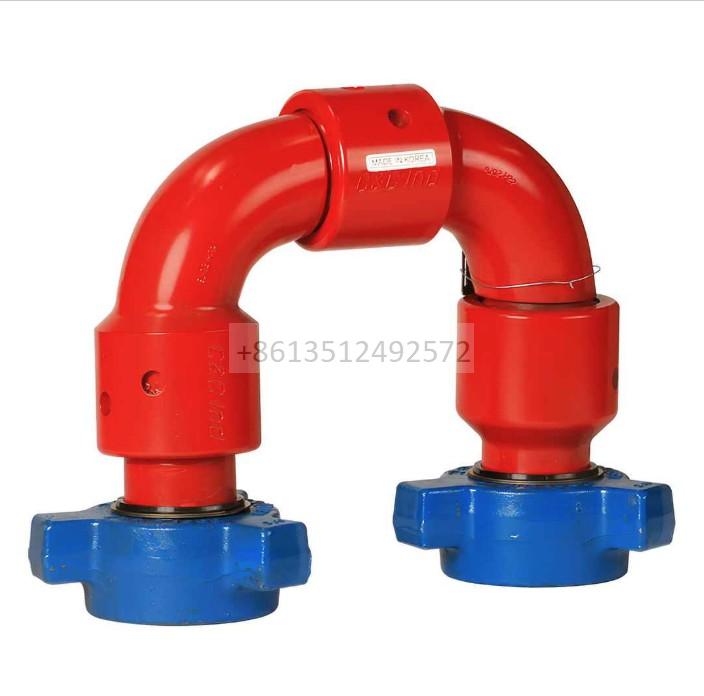

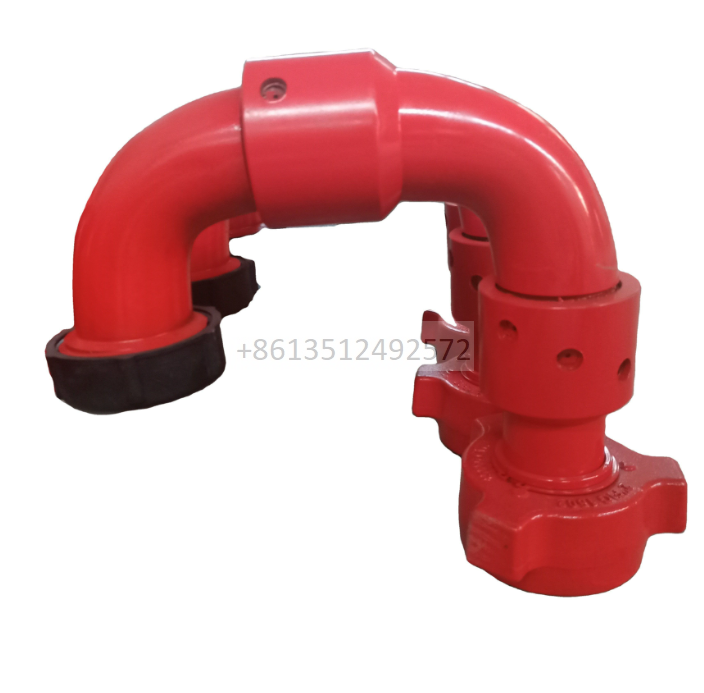

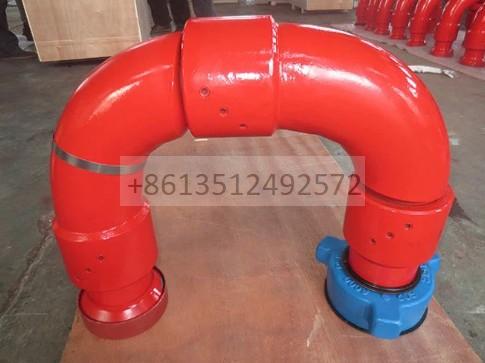

Swivel Joints are designed and manufactured using high tensile alloy steel that is suited to handle some of the world’s most abrasive environments such as fracturing, cementing, acidizing, and other high-pressure applications.

Product Introduction

Technical Specifications:

Models	Color Code	Cold Working Pressure (psi)	Material	End Connections	Size(Inches)
					3/4"	1"	1.1/4"	1.1/2"	2"	3"	4"
Lower Pressure Swivel Joints	Blue	1000	Carbon Steel	NPT					★	★	★
				Beveled for welding					★	★	★
High Pressure Short Radius Swivel Joints	Sliver	6000	Alloy Steel	Female line Pipe threads	★	★	★	★	★	★	★
				Fig.602 Union	★	★	★	★	★	★	★
Extra High Pressure Long Sweep Swivel Joints	Olive Green (Sour Service)	7500	Alloy Steel	Fig.1002 Union					★	★	★
	Olive Green (Sour Service)	10000	Alloy Steel	Fig.1502 Union		★		★	★	★	★
	Black	10000	Alloy Steel	Female line Pipe threads		★		★	★	★	★
				Fig.1002 Union					★	★	★
	Olive Green (Sour Service)	15000	Alloy Steel	Fig.2002 Union					★	★
	Red	15000	Alloy Steel	Fig.1502 Union		★		★	★	★	★
	Light Blue	20000	Alloy Steel	Fig.2002 Union					★	★
