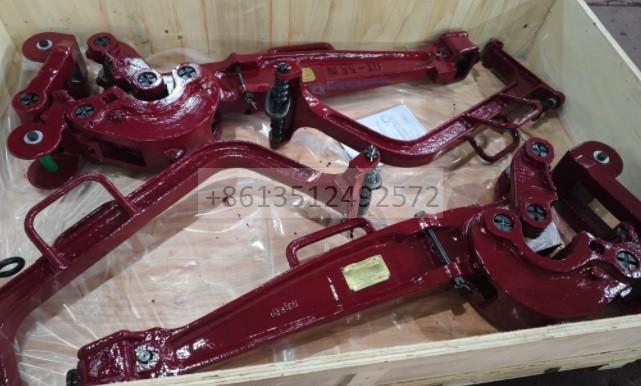

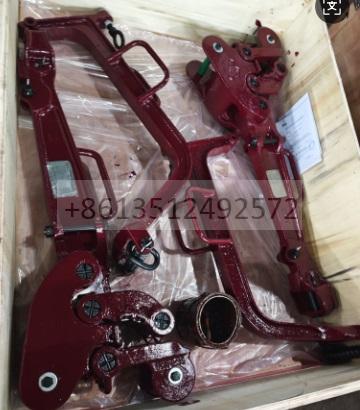

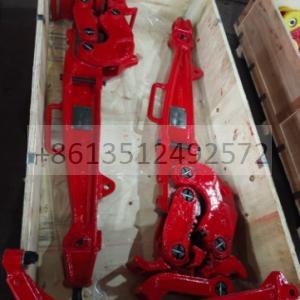

SB Type Manual Tong (3-1/2"~13-3/8"-75)

Type SB Manual Tong is an essential tool in oil drilling operation to fasten or remove the screws of drill pipe and casing joint or coupling. It can be adjusted by changing latch lug jaws and latch steps. The available range of manual tongs is from 3-3/8 ~13-3/8 inches.

Manual tong with API7K standard

• Manual tong is an essential tool in oil drilling operation to fasten or remove the screws of drill pipe and casing joint or coupling.

• The handling size of manual tong I can be adjusted by changing latch lug jaws and latch steps.

No.of Latch Lug jaw	Latch step	Size Range(mm(in))		Rated Torque(kN.m)
No.of Latch Lug jaw	Latch step	in	mm	Rated Torque(kN.m)
1#	1	3.1/2-4.1/8	88.9-104.78	75
1#	2	4.1/8-5	104.78-127
2#	1	4.1/4-5.1/4	107.95-133.35
	2	5-5.3/4	127-146.05
	3	6-6.3/4	152.4-171.45
3#	1	6.5/8-7.1/4	168.28-184.15	75
	2	7.3/8-8	187.33-203.2
	3	8.1/2-9	215.9-228.6
4#	1	9-9.5/8	228.6-244.48	55
4#	2	10.5/8-10.3/4	269.88-273.05
5#	1	11.3/4	298.45
6#	1	12.3/4-13	323.85-330.2	40
7#	1	13.3/8	339.73	40
