Fluid end modules form the core of a mud pump system. They drive drilling operations forward while keeping crews safe and equipment reliable. In oil and gas, performance is everything.

One weak component can cause downtime, lost production, and costly repairs. Selecting high-performance parts is essential for consistent flow rates and withstanding high pressures.

Let’s break down the key factors to look for when choosing fluid end modules. We’ll include material quality, pressure performance, compatibility, durability, and compliance with industry standards.

Material Quality & Heat Treatment

The strength of a fluid end module starts with the material it’s made from. High-quality alloys are vital to withstand harsh drilling environments. Exposure to abrasive fluids, extreme temperatures, and heavy loads is the norm. Substandard metals wear quickly, leading to cracks, leaks, and unplanned downtime.

Alloy Selection

Fluid end modules built from high-quality alloys provide superior resistance to wear. These alloys maintain structural integrity under high-pressure loads. This extends the working life of the pump and reduces the frequency of part replacements.

Wear Resistance

The constant movement of abrasive fluids puts strain on fluid end components. Alloys with high wear resistance reduce erosion and surface damage. This helps maintain flow efficiency and prevents performance decline during extended drilling runs.

Stress Cracking Prevention

Heat-treated alloys provide added durability by strengthening the material structure. Proper heat treatment reduces the risk of stress cracking and fatigue failures. It keeps fluid end modules reliable through repeated high-pressure cycles.

Performance Under High Pressure

Mud pump systems face extreme conditions. Using the right high-pressure parts is critical for safe and efficient operations. Key benefits of choosing pressure-rated fluid end parts include:

Parts designed for high pressure protect against sudden breakdowns

Consistent performance reduces unplanned downtime

Pressure-rated components improve pump efficiency under continuous use

Reinforced strength ensures safer drilling operations

Compatible with land and offshore drilling rigs

Reliable manufacturers like Gardner Denver set the standard for performance

High-pressure parts maintain flow stability in demanding conditions

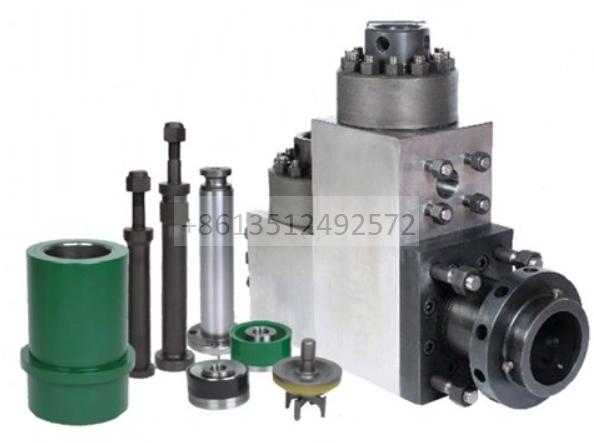

We offer a complete line of interchangeable fluid end modules and accessories for triplex mud pumps, available in both 5000 psi and 7500 psi configurations. These fluid ends and components are compatible with  systems such as National, Emsco, Gardner Denver, Bomco, Ideco, and Oilwell.

Every part is built to the highest quality standards for top performance and long-lasting durability. Both standard replacements and two-piece “L”-shaped fluid ends are available to meet specific operational needs.

Compatibility with Pump Systems

Not all fluid end parts are interchangeable. Using components that match your mud pump model ensures smooth and trouble-free operation. Here’s why proper compatibility matters:

Designed to fit major mud pump models without modifications

Off-spec parts increase the risk of mechanical failures

Proper alignment ensures longer pump life

Correct fit supports optimal fluid flow and pressure balance

Easier installation saves time during maintenance

Keeps pumps compliant with manufacturer specifications

Durability Against Stress Cracking

Mud pump parts are under constant stress. Selecting durable components helps prevent failures and extends pump life. Key advantages of high-quality, fatigue-resistant parts include:

Stress cracking is a common problem with poor-quality materials

Durable parts resist fatigue and extend service life

Frequent inspections identify wear early

Heat-treated alloys reduce cracking and corrosion risks

High-quality parts prevent unexpected leaks or breakdowns

Extending part life reduces replacement costs over time

Consistent durability improves overall drilling reliability

Meeting Industry Standards

Following oil and gas industry rules is very important for fluid end modules and parts. These rules make sure the parts are made, tested, and certified to be safe and work well. Using parts that don’t meet these rules may save money at first, but can cause big problems, like system failures or safety accidents.

Certified parts are built to be strong, reliable, and consistent. They can handle the tough conditions of oilfield work and help prevent serious breakdowns. Certified suppliers keep your operation following the rules, protecting your workers and equipment.

In oilfield work, safety and uptime are both critical. Using parts that meet or exceed standards is the best way to keep your job running smoothly and protect your investment.
