Dual or three Pot Sand Filter

Dual or three Pot Sand Filter

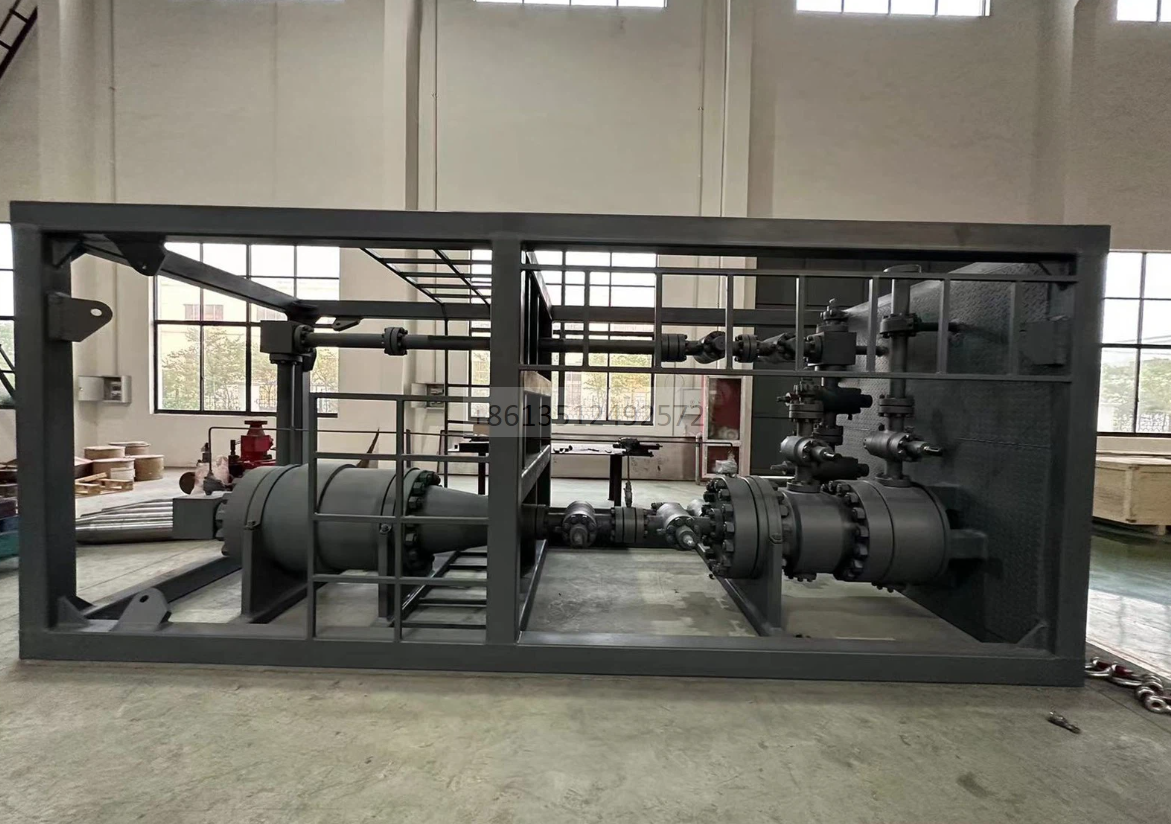

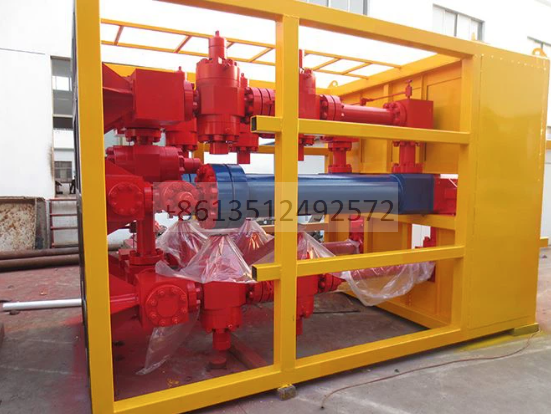

The Dual Pot Sand Filter is oilfield-specific equipment designed to remove sand and solids from well fluids and gases. It is an essential tool for a wide range of onshore and offshore surface well testing, flowback and early production work. It consists of two troughs (vertical vessels) and filter inserts designed to handle specific ranges of particles from 100 to 800 microns, while sand management solutions provide additional filtration ranges.

It includes slab gate valve, blowdown pressure relief valve, differential pressure gauge, nozzle and water spray system, hammer joint for easy pipe connection, and special steel structure for easy transportation, operation and cleaning of filter elements. Since the pressure and working conditions of oil wells may be different, it is suitable for dual boiler desanders of various high-pressure grades from 5000psi to 15000psi.

The Dual Pot Sand Filter can handle high gas flows of up to 1 million m3/day and liquid flows of up to 10,000 barrels/day. Its material of construction is carbon steel, while the inserts are stainless steel or special reinforced alloys. Building materials adopt DD or EE to API standards. It is suitable for Dual Pot Sand Filters for onshore and offshore applications.

Features

Suitable for onshore and offshore applications

Easy to mobilize

Durable components

Mechanical Monitoring

Digital Surveillance

Easy to operate and maintain

Application

Well clean-up

Flowback

Surface well testing

Early Production

Codes & Standards

Well clean-up

Flowback

Surface well testing

Early Production

Codes & Standards

API 6A

ASME VIII DIV 2

ASME B31.3

NACE MR 0175 / ISO 15156

Pressure rating

5000 psi

10000 psi

15000 psi

Other according to customer requirements
