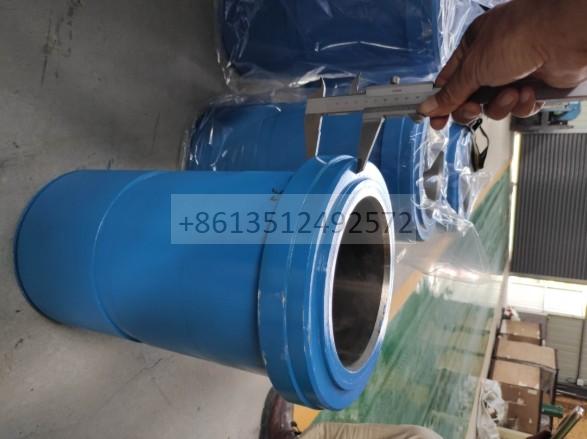

Ceramic liner

Ceramic liner

Description

Liner for Mud pump in oil and gas

company of Ceramic liner products production was listed in the national key "analyzed a superior" project, which was listed in the ten. During the five countries "torch plan" project. As a Ceramic liner professional production base, I in the company to the fine product performance and stable product quality, timely and thoughtful after-sales service returns social service. In recent years, through constant technology innovation, and strive to meet customer demand, ceramic cylinder ESPecially zirconia ceramics cylinder products have been exported to North America, the Middle East and other countries and regions, the domestic oil fields are in use.

Ceramic liner has the following advantages:

applies to oil reservoir deep, geological structure of the bad drilling environment and sea oil and gas development.

Painted metal cylinder liner improve than double 5-10 times the using life. Service life can reach 4000 hours or above, minimum service life for 2000 hours.

use phase change toughening technology development of zirconia ceramics cylinder liner are resistant to wear resistance, corrosion resistance, high pressure, high temperature resistant, high strength, high hardness advantages.

the transportation cost of reducing drilling work, maintenance cost, and people work cost, storage costs......

We can offer you the following types ceramic liner, such as 3 NB500, 3 NB1000C, ZQ1000, OPI700, etc. I company produces the ceramic cylinder liner is applicable to all types of Mud Pump at home and abroad, such as LanShi pump, gem pump, pumps and NATIONAL OILWELL, classification, IDECO, EMSCO and GARDNER-DENVER, etc. But also according to the customer's drawing processing production.

Products Description

We are a professional supplier of mud pump liners that used on all kinds of mud pumps including: China F series Mud Pumps(made by BOMCO, RG, RONGLI, RONGSHENG, HONGHUA), China 3NB series Mud Pumps(made by Lanzhou) GARDNER DENVER, NATIONAL, OILWELL, IDECO etc.

China F series Mud Pump: F-500, F-800/1000, F-1300/1600

China 3NB series Mud Pump: 3NB-350, 3NB-500, 3NB-600, 3NB-800, 3NB-1000, 3NB-1300, 3NB-1600

EMSCO:F-350, F-500, F-650, F-800, F-1000, FA-1300, FB-1300, FA-1600, FB-1600

GARDNER DENVER: PZ-7, PZ-8/9, PZ-10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP

NATIONAL: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400

OILWELL:A-560/600-PT,A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

IDECO: T-500, T-800, T-1000, T-1300, T-1600

And other brand liners for WIRTH, OPI, ELLIS WILLIAMS, WHITE STAR etc.

Bi-metal Liners

The bi-metal liner is composed of two layers and fixed tightly. The outer sleeve is forged steel with abrasion resistance, it adapts the technology of centrigugal forging;  the inner sleeve is high chromium iron with wear&corrosion resistance, after heat treatment, the hardness of it can reach to a lever of 62 RC.

The bi-metal liners produced by us strictly control the tolerance, assure the easy installation, inner sleeve is highly polished with abrasion&corrosive resistance, can used in various bad working environment with longer service life.

Liner Outer Sleeve: 45#forged steel, tensile strength is σb>610MPa, yield strength is σs>450MPa, ,elongation hardness is §>17%,hardness is HRC180-200

Liner Inner Sleeve: high chromium cast iron (centrifugal forged). Annealing hardness is HRC≤40. Quenching hardness is HRC59-67

Chemical Composition:C 2.8%-3.1%   Cr 26%-28%  Si 0.6%-0.9% Mn 0.5%-1%        Mo 0.5%-0.8%   S , P <0.05%;

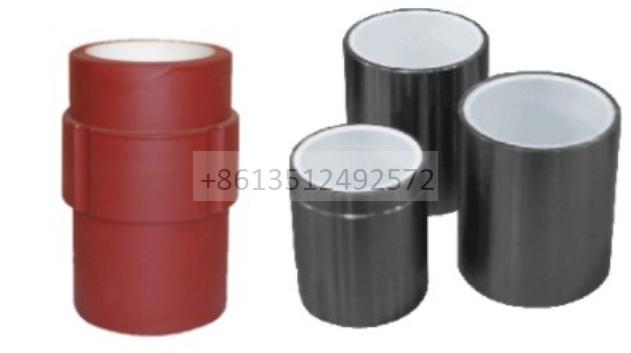

Ceramic Liners

The ceramic liner is composed of two layers and fixed tightly. The outer sleeve is forged steel with abrasion resistance, the inner sleeve is ceramic.

The ceramic liner seems expensive but actually cut the cost of running mud pumps. Our ceramic liners are proved has a service life of 4000 hours.

Chromium-plated Liners

The chorme-plated liner is made from premium forged steel with the bore plated by chrome. the hardness is 58-62HRC.

Material is 45#forged steel, tensile strength is σb>610MPa, yield strength is σs>450MPa, ,elongation hardness is §>17%,hardness is HRC180-200.(the hardness of the casted outer sleeve is HRC160-200 )

High Frequency Quenching Liners

The high frequency quenching liner is suitable to use in the condition of mild corrosive mud.

The liners are hardened and heat treated under strict quality control, the hardness can reach to a level of 60HRC.

The inner sleeve is highly polished, abrasion&corrosion resistance, thus have a long service life.
