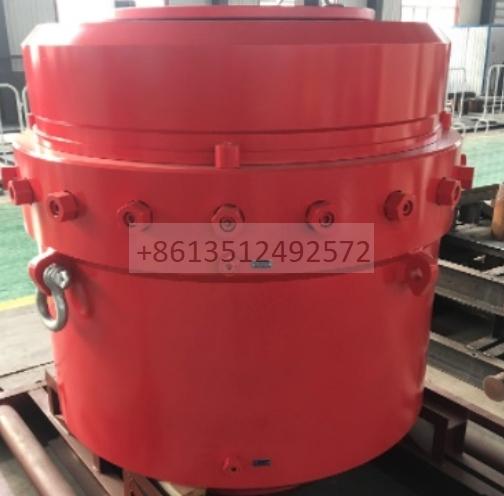

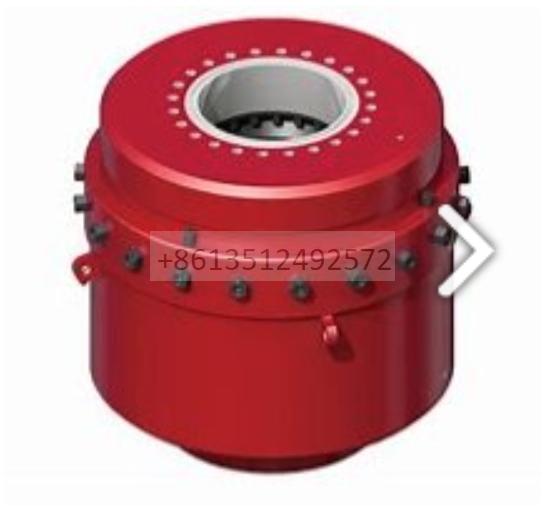

Annular BOP

Structural style：Shaffer style.Hydril style

According to the latest API Spec 16A standard

According to the latest API Spec Q1 , quality standard of IOS9001 and NACE-MR-01-75 ,H2st Trim

The ring grooves of flanges are all lined with the corrosion resistant alloy

Description

The annular packing element, shaffer type,serves a critical function in well control during petroleum drilling operations. This tapered packing element creates a reliable seal within the BOP's annular space, preventing the uncontrolled release of fluids or gas from the well.

The tapered design of the packing element optimizes its sealing capabilities by providing uniform pressure distribution. This promotes a secure seal, even in challenging drilling conditions. The choice of materials for the packing element is crucial to ensure resilience against the harsh environments encountered in drilling operations.

Overall, the annular packing element, GK type, plays a vital role in maintaining well integrity and preventing blowouts, contributing to the safety and efficiency of drilling operations in the oil and gas industry.

Packaging & Shipment

Packaging type: Export Plywood Box

Exporting port: Tianjin, Shanghai

Item	Type	Specification
1	7-1/16″-3000psi Annular BOP	Bore: 7-1/16″ Working pressure: 3,000psi Top connection: 7-1/16″-3000psi 6B R45 SST Studded Bottom connection: 7-1/16″-3000psi 6B R45 SST Flanged
2	7-1/16″-5000psi Annular BOP	Bore: 7-1/16″ Working pressure: 5,000psi Top connection: 7-1/16″-5000psi 6B R46 SST Studded Bottom connection: 7-1/16″-5000psi 6B R46 SST Flanged
3	7-1/16″-5000/10000psi Annular BOP	Bore: 7-1/16″ Working pressure: 5,000psi Top connection: 7-1/16″-5000psi 6B R46 SST Studded Bottom connection: 7-1/16″-10000psi 6BX BX156 SST Flanged
1	7-1/16″-10000/15000psi Annular BOP	Bore: 7-1/16″ Working pressure: 10,000psi Top connection: 7 1/16″-10000psi 6BX BX156 SST Studded Bottom connection: 7 1/16″-15000psi 6BX BX156 SST Flanged
4	9″-3000psi Annular BOP	Bore: 9″ Working pressure: 3,000psi Top connection: 9″-3000psi 6B R49 SST Studded Bottom connection: 9″-3000psi 6B R49 SST Flanged
5	9″-5000psi Annular BOP	Bore: 9″ Working pressure: 5,000psi Top connection: 9″-5000psi 6B R50 SST Studded Bottom connection: 9″-5000psi 6B R50 SST Flanged
6	9″-5000/10000psi Annular BOP	Bore: 9″ Working pressure: 5,000psi Top connection: 9-″5000psi 6B R50 SST Studded Bottom connection: 9″-10000psi 6BX BX157 SST Flanged
7	11″-3000psi Annular BOP	Bore: 11″ Working pressure: 3,000psi Top connection: 11″-3000psi 6B R53 SST Studded Bottom connection: 11″-3000psi 6B R53 SST Flanged
8	11″-5000psi Annular BOP	Bore: 11″ Working pressure: 5,000psi Top connection: 11″-5000psi 6B R54 SST Studded Bottom connection: 11″-5000psi 6B R54 SST Flanged
9	11″-5000/10000psi Annular BOP	Bore: 11″ Working pressure: 5,000psi Top connection: 11″-5000psi 6B R54 SST Studded Bottom connection: 11″-10000psi 6BX BX158 SST Flanged
10	13 5/8″-3000psi Annular BOP	Bore: 13 5/8″ Working pressure: 3,000psi Top connection: 13 5/8″-3000psi 6B R57 SST Studded Bottom connection: 13 5/8″-3000psi 6B R57 SST Flanged
11	13 5/8″-5000psi Annular BOP	Bore: 13 5/8″ Working pressure: 5,000psi Top connection: 13 5/8″-5000psi 6BX BX160 SST Studded Bottom connection: 13 5/8″-5000psi 6BX BX160 SST Flanged
12	13 5/8″-5000/10000psi Annular BOP	Bore: 13 5/8″ Working pressure: 5,000psi Top connection: 13 5/8″-5000psi 6BX BX160 SST Studded Bottom connection: 13 5/8″-10000psi 6BX BX159 SST Flanged
