gasket LNG and pipe line

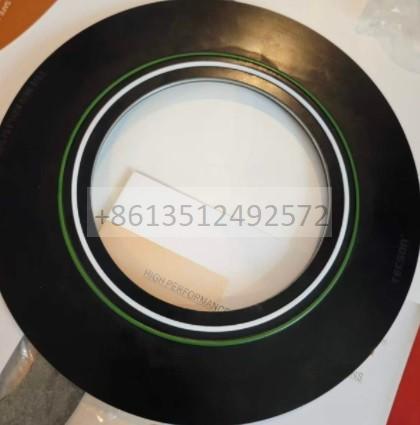

HPG System is a high reliabiilty seal system used for both isolating and general sealing purposes, especially suitable in High Pressure services. The HPG seal is a high reliability system used for both isolating and general sealing purposes, especially suitable in High Pressure services including ANSI 2500# and API 10,000# classes

Applications:

l Flange isolation in conjunction with cathodic protection.

l Isolation between dissimilar metals to prevent galvanic corrosion.

l Wellhead isolation from inter-connected flow lines.

l Mating mismatched ring-joint to raised-face flanges (HPG will seal in ring-joint, raised-face and flat face/slip-on flanges).

l Eliminate fluid trap corrosion between ring-joint (RTJ) flanges where high concentrations of CO2, H2S and other

aggressive hydrocarbon media are present.

l Eliminate turbulence and flow-induced erosion between ring-joint (RTJ) flanges.

l Protect against coating damage on coated flange faces.

l To seal between flanges subjected to vibration/cavitation.

Materials

Metallic Core

Themetallic core of gasket is made of stainless steel 316L.

Other metals,including Duplex and Inconel are available upon request.

Isolating Material

1)G-10 Glass-Reinforced Epoxy (GRE)laminate:

Compressive Strength: 65,000 PSI

Dielectric Strength: 750-800 VPM

Max.Continuous Operating Temp: 300 degrees F (150 degrees C)

Water Absorption: .05%

Flexural Strength: 65,000 PSI

Tensile Strength: 50,000 PSI

2)G-11 Glass-Reinforced Epoxy (GRE) HighTemp. laminate material:

Compressive Strength: 50,000 PSI

Dielectric Strength: 500 VPM

Max.Continuous Operating Temp: 398 degrees F (200 degrees C)

Water Absorption: .085%

Flexural Strength: 57,700 PSI

Tensile Strength: 41,000 PSI

Seal Material

PTFE (Spring-Energized)

Viton

Buna-Nitrile

Silicon

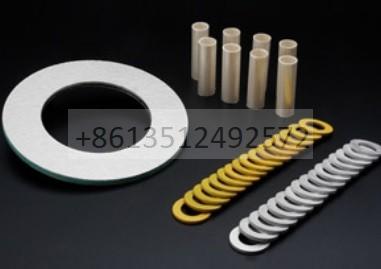

Isolating Sleeve

GRE

Mylar

NOMEX

Isolating Washers

GRE - G10/G11

HCS Washers

Steel Washer

ZPS

XPS

SS
