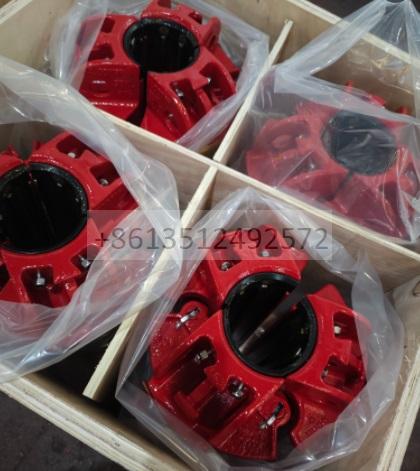

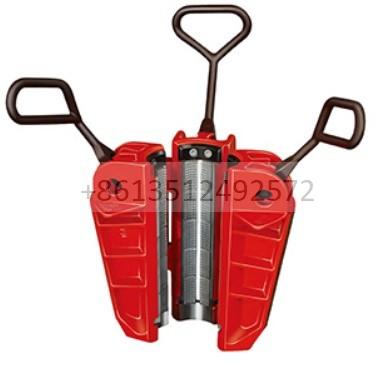

This series of drill pipe slips are designed and manufactured according to the requirements of API Spec 7K. They are suitable for oil and gas drilling operations, used to hold drill pipes, drill collars, casing and other pipe strings, and provide necessary tools for fastening or unfastening.

Sizes and models	Scarva body Specifications	Applicable string outside diameter		dental plate		Rated load (kN)
Sizes and models	Scarva body Specifications	in	mm	Specifications	Quantity	Rated load (kN)
RTHS 4 × 3	4	3	76.2	4 x 3	84	3114
RTHS 4×3.1/8		3.1/8	79.38	4 × 3.1/8
RTHS 4×3.1/4		3.1/4	82.55	4 × 3.1/4
RTHS 4×3.3/8		3.3/8	85.73	4 × 3.3/8
RTHS 4×3.1/2		3.1/2	88.9	4 × 3.1/2
RTHS 4×3.5/8		3.5/8	92.08	4 × 3.5/8
RTHS 4×3.3/4		3.3/4	95.25	4 × 3.3/4
RTHS 4×3.7/8		3.7/8	98.43	4 × 3.7/8
RTHS 4×4		4	101.6	4 × 4
RTHS 5×4	5	4	101.6	5 x 4	105	4448
RTHS 5×4.1/8		4.1/8	104.78	5 × 4.1/8
RTHS 5×4.1/4		4.1/4	107.95	5 × 4.1/4
RTHS 5×4.3/8		4.3/8	111.13	5 × 4.3/8
RTHS 5×4.1/2		4.1/2	114.3	5 × 4.1/2
RTHS 5×4.5/8		4.5/8	117.48	5 × 4.5/8
RTHS 5×4.3/4		4.3/4	120.65	5 × 4.3/4
RTHS 5×4.7/8		4.7/8	123.83	5 × 4.7/8
RTHS 5×5		5	127	5 × 5
RTHS 6×5	6	5	127	6 x 5	126	6005
RTHS 6×5.1/8		5.1/8	130.18	6 × 5.1/8
RTHS 6×5.1/4		5.1/4	133.35	6 × 5.1/4
RTHS 6×5.3/8		5.3/8	136.53	6 × 5.3/8
RTHS 6×5.1/2		5.1/2	139.7	6 × 5.1/2
RTHS 6×5.5/8		5.5/8	142.88	6 × 5.5/8
RTHS 6×5.3/4		5.3/4	146.05	6 × 5.3/4
RTHS 6×5.7/8		5.7/8	149.23	6 × 5.7/8
RTHS 6×6		6	152.4	6 × 6
RTHS 7×6	7	6	152.4	7 × 6	147	6672
RTHS 7×6.1/8		6.1/8	155.58	7 × 6.1/8
RTHS 7×6.1/4		6.1/4	158.75	7 × 6.1/4
RTHS 7×6.3/8		6.3/8	161.93	7 × 6.3/8
RTHS 7×6.1/2		6.1/2	165.1	7 × 6.1/2
RTHS 7×6.5/8		6.5/8	168.28	7 × 6.5/8
RTHS 7×6.3/4		6.3/4	171.45	7 × 6.3/4
RTHS 7×6.7/8		6.7/8	174.63	7 × 6.7/8
RTHS 7×7		7	177.8	7 × 7
