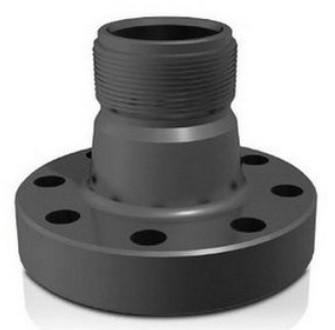

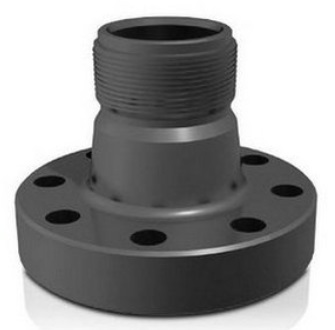

Wellhead Adapter Flange

Wellhead Adapter Flange provides a means of connecting the Wireline BOPand Lubricators Assembly to the Wellhead in a safe and secure way.Normally, Wellhead Adapter Flange of Wireline PCE consists of a Unionmachined on a standard API Flange. The upper end are Bowen Type(Type B)Otis Type (Type C)Quick Union for selective, and our Wincent (Type W)Union for supplement. Normally, the Flange will be supplied with ThreadProtector, Bolts, Nuts and Gasket Ring fully.

Feature
1) Design and manufacturing comply with API Spec-6A,it will be applied to allAPl standard models.
2)One piece forging of the Flange Body, without welding.
3) The pressure-containing parts are made of high strength alloy steel with goodcorrosion resistance.

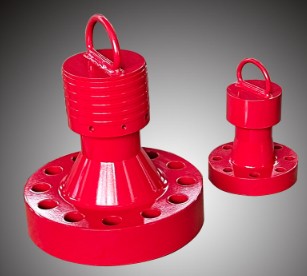

4) Accessories such as Thread Protector, Bolts, Nuts and Gasket Ring all beprovided for convenient use.
Main Parameter
1)1.D.
2)Working Pressure
3)Upper Union Required, Lower APl-6A Flange Required4)Service Environment(STDor H2S)5)Working Temperature
