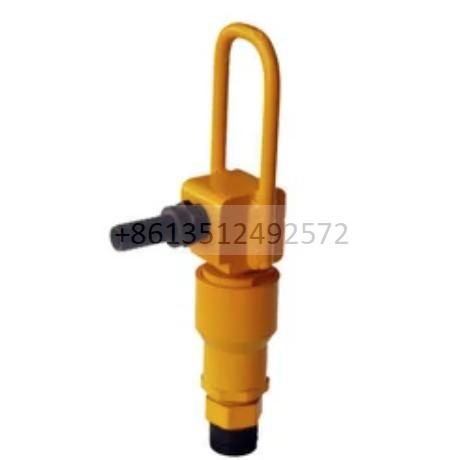

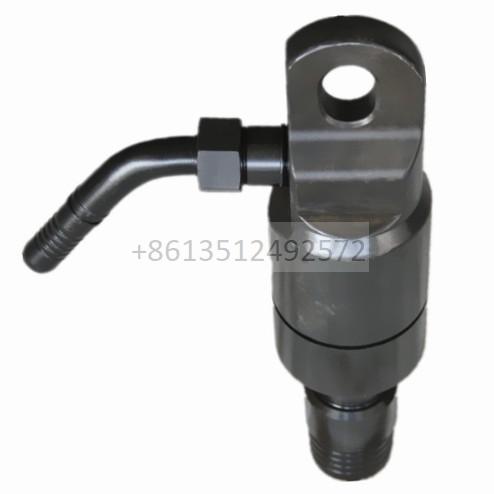

Water Swivel
- Product Item : 1234
- Category： Pneumatic pipe spinner SSW40
- Water Swivel
- Water Swivel Manufacturer
Description
1.XSL-Swivel with spinner is a combination of swivel and Kelly spinner, driven by air Motor or hydraulic Motor, with keyless connection adopted between spinner and central pipe of swivel.
2.It is designed and manufactured according to API spec8 A"Specification for drilling and production hoisting equipment"
Welcome to consult, we will provide the most comprehensive technical support!
|
Model |
XSL135 |
XSL170 |
XSL225 |
XSL315 |
XSL450 |
|
|
Max static load |
KN |
1350 |
1700 |
2250 |
3150 |
4500 |
|
US ton |
150 |
180 |
250 |
350 |
500 |
|
|
Rated work load |
KN |
1000 |
1300 |
1600 |
2200 |
3200 |
|
US ton |
110 |
145 |
175 |
245 |
350 |
|
|
Max speed |
rpm |
300 |
300 |
300 |
300 |
300 |
|
Mad working pressure |
Mpa |
35 |
35 |
35 |
35 |
35 |
|
Psi |
5000 |
5000 |
5000 |
5000 |
5000 |
|
|
Thread of drilling hose |
4LP |
4LP |
4LP |
4LP |
4LP |
|
|
Thread below sub |
6-5/8"reg LH |
6-5/8"reg LH |
6-5/8"reg LH |
6-5/8"reg LH |
6-5/8"reg LH |
|
|
Overall dimensions |
cm |
234*68*59 |
293*79*66 |
326*98*78 |
345*110*83 |
345*110*83 |
|
in |
92*27*23 |
115*31*26 |
129*39*31 |
136*43*33 |
136*43*33 |
|
|
Weight |
kg |
1718 |
2000 |
2772 |
2972 |
2972 |
|
ib |
3997.6 |
4409 |
6111 |
6550 |
6550 |
|

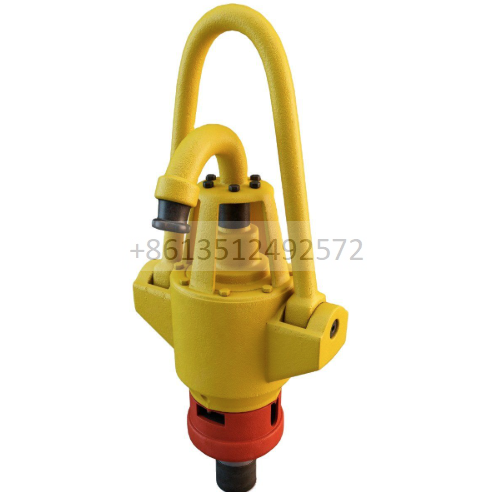

Introducing our Water
Swivel for drilling: the epitome of engineering excellence and reliability.
Our cutting-edge swivel comes in two distinct varieties: the classic common
swivel and the innovative double duty swivel. The double duty swivel seamlessly
integrates the conventional swivel with a spinner for enhanced functionality.
The robust common swivel boasts essential components such as swivel bail,
shell, support, gooseneck, central pipe, master bearing, joint, and more.
Designed for precision, the lower end connects effortlessly with the kelly stem
through REG thread. The swivel bail elegantly suspends from the hook, while the
gooseneck and rotary hose offer versatile connectivity through REG thread or
union connection.
Series of Swivel
|
Model |
SL135 |
SL160 |
SL170 |
SL225 |
SL315 |
SL450 |
|
|
Max. Static Load |
kN |
1350 |
1600 |
1700 |
2250 |
3150 |
4500 |
|
Uston |
150 |
180 |
190 |
250 |
350 |
500 |
|
|
Dynamic Load Rating |
kN |
1000 |
1200 |
1300 |
1600 |
2200 |
3200 |
|
Uston |
110 |
135 |
145 |
180 |
250 |
360 |
|
|
Max. Speed |
rpm |
300 |
300 |
300 |
300 |
300 |
300 |
|
Mpa |
35 |
35 |
35 |
35 |
35 |
35 |
|
|
Max. Pressure |
psi |
5000 |
5000 |
5000 |
5000 |
5000 |
5000 |
|
mm |
64 |
64 |
64 |
75 |
75 |
75 |
|
|
Bore Size of Central Pipe |
in |
2.52 |
2.52 |
2.52 |
3 |
3 |
3 |
|
Thread of Drilling Hose |
4LP |
4LP |
4LP |
4LP |
4LP |
4LP |
|
|
Sub Connection |
65/8REG-LH |
65/8REG-LH |
65/8REG-LH |
65/8REG-LH |
65/8REG-LH |
65/8REG-LH |
|
|
Size |
mm |
2280*680*590 |
2280*680*590 |
2550*820*835 |
2800*980*790 |
3015*1096*830 |
3015*1096*830 |
|
in |
90*27*33 |
90*27*33 |
100*32*33 |
110*39*31 |
119*43*33 |
119*43*33 |
|
|
Weight |
kg |
1500 |
1500 |
1782 |
2500 |
2700 |
2700 |
|
lb |
3307 |
3307 |
3928 |
5512 |
5950 |
5950 |
Series of Swivel with Spinner
|
Model |
XSL135 |
XSL160 |
XSL170 |
XSL225 |
XSL315 |
XSL450 |
|
|
Size |
mm |
2340*790*660 |
2340*790*660 |
2926*820*835 |
3137*1096*830 |
3450*1096*830 |
3450*1096*830 |
|
in |
92*31*26 |
92*31*26 |
115*32*33 |
123.5*43*33 |
136*43*33 |
136*43*33 |
|
|
Weight |
kg |
1718 |
1718 |
2000 |
2772 |
2972 |
2972 |
|
lb |
3779.6 |
3779.6 |
4409 |
6111 |
6550 |
6550 |
|
