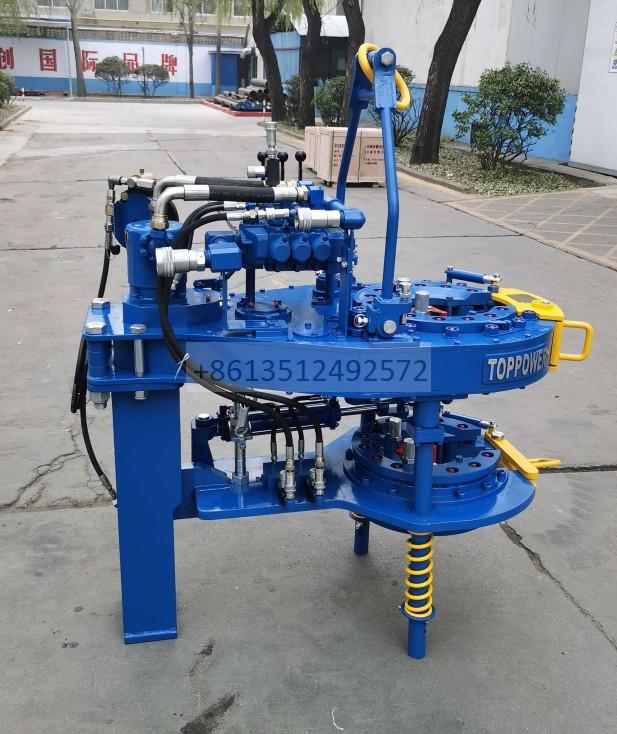

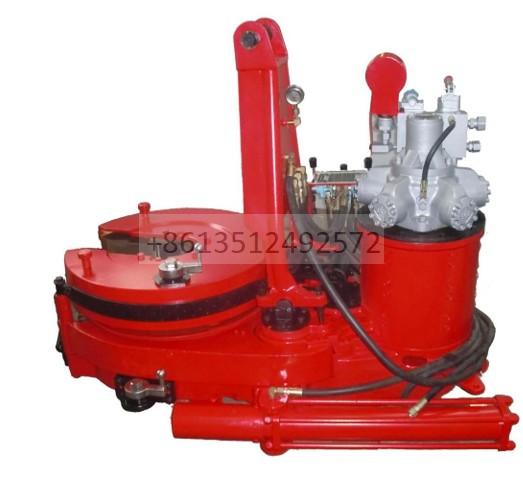

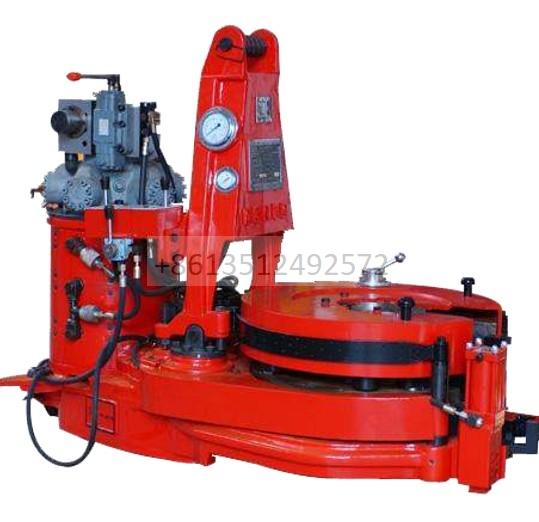

Drill pipe tong
- Product Item : 123
- Category： Pneumatic pipe spinner SSW40
- Drill pipe tong
- Drill pipe tong manufacyturer
Drill pipe tong is widely used in offshore and land drilling and workover operations. It is safe, labor-saving and improve work efficiency. Open type,which can be separated from the pipe string freely.
This series of drill pipe tongs has the following features:
1.Shift gears without stopping.
2.Integrated structure of make-up wrench and torque wrench (except ZQ127/25).
3.The clamping of the back vise and gear shifting are powered by compressed air (except for ZQ127/25).
4.Both the old and new joints are tightly and reliably clamped.
|
Models |
ZQ127/25 |
ZQ162/35 |
ZQ203/100 |
ZQ203/125 |
|
Range |
ø60~140 2 3/8” ~ 5 1/2” |
ø60~140 2 3/8” ~ 5 1/2” |
ø127~203 5”~ 8” |
ø127~203 5”~ 8” |
|
High Gear Rated of Torque |
5100N·m 3760ft·lbs |
8000N·m 6000ft·lbs |
7000N·m 5160ft·lbs |
10000N·m 7380ft·lbs |
|
Low Gear Rated of Torque |
25000N·m 18440ft·lbs |
35000N·m 25830ft·lbs |
100000N·m 73800ft·lbs |
125000N·m 92250ft·lbs |
|
High Gear Rated Speed(RPM) |
43 |
43 |
40 |
33 |
|
Low Gear Rated Speed(RPM) |
8 |
8 |
2.7 |
2.2 |
|
Rated Operation Pressure |
16Mpa 2320psi |
14MPa 2030psi |
16Mpa 2320psi |
18Mpa 2610psi |
|
Max. Flow |
120L/min 32gpm |
120L/min 32gpm |
114L/min 30gpm |
120L/min 32gpm |
|
Pneumatic Operation Pressure |
/ |
/ |
0.5-0.9MPa 72.5-130.5psi |
0.5-0.9MPa 73-131PSI |
|
(L×W×H)（mm） Dimension（in） |
1250×780×1000 49.2×30.7×39.4 |
1300×770×850 51×30.3×33.5 |
1700×1000×1400 66.9×39.4×55.1 |
1750×1060×1680 70.9×43.3 ×57 |
|
Weight(Combination) |
650kg 1433lbs |
850kg 1874lbs |
2400kg 5291Ib |
2500kg 5512Ibs |
