BOP parts that we supply all come from original manufacturers, they are 100% interchangeable.

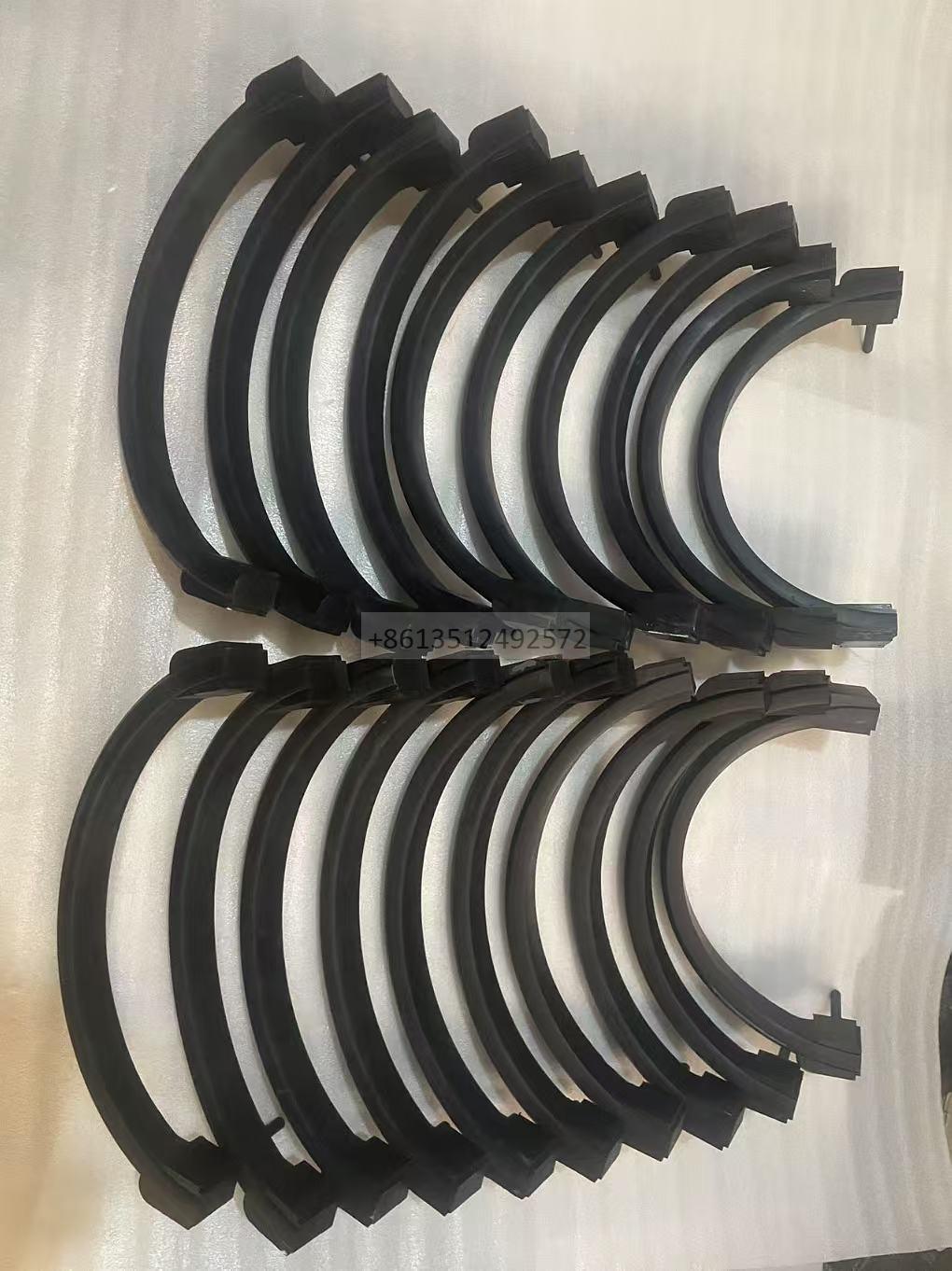

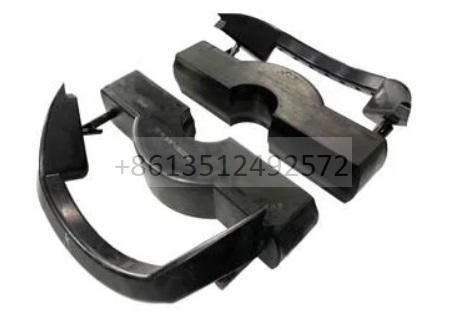

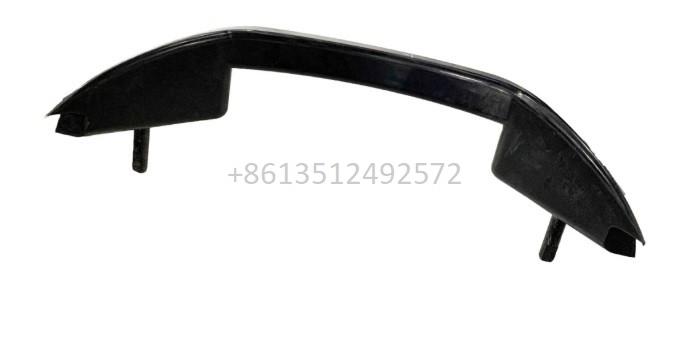

BOP PART NAME: top sealing, front sealing, pipe ram, blind ram, slip ram, shear ram, spherical packer, bonnet, piston, shell.

Specification:

1. Standad: API 16 A and ISO 9001
2. Rated Pressure: 2000Psi to 15000Psi(14-17 Mpa)
3. Size: Nominal Bore: 7-1/16" to 21-1/4" (179.4mm to 539.75mm)
4. Type: Shear Ram/ Pipe Ram/ Variable Bore Ram
5. Usage : Single Ram BOP/ Double Ram BOP/ Three Ram BOP
6.Brand:Shenkai and Rongsheng.
7.Imitate: Camaron and Shaffer
8.U type and SH type

Characters of BOP pare parts:
In the structure, it is divided into annular blowout preventer with spherical plastic core, annular blowout preventer with cone-shaped plastic core, and blowout preventer with tube-shaped plastic core. Annular BOP top cap and housing are connected by bolts or claw blocks.

Blowout preventer with spherical plastic core and dust-proof ring.
Performance characteristics: reasonable structure, easy operation, long life of plastic core, adapt to a wide range, capable to seal pipe string with nominal paths from 0-DN in ans shapes, better performance by combining with ran blowout preventer in the use.

Working of BOP pare parts:
When wells must be sealed in case of kicks high pressure (10.5Mpa) oil from control systems enters into close-cavity under piston from housing oil outlet, to promote plastic core moving upward along ball surface, so that bearing tendons move closer to each other to moce the rubber between them to the center of wellhead so as to seal drilling tools or fully seal wellhead. In opening , hydraulic pressure oul enters into open-cavity above piston from housing oul inlet, to push piston moving downwards , so that plastic will reset with its own elasticity, wellhead will be open.

No.	Name	P/N	Quantity
1	Removal of screw	FH3570-19	12
2	Hold-down ring	FH3570-01	1
3	Top cover	SKFW14-353-03.01.00	1
4	Sealing rubber core	SKFW14-353-03.02.00	1
5	Combination sealing ring	SKFW14-353-03.08	1
6	Mud ring	SKFW14-353-03.03	1
7	Combination sealing ring	FH3570-14-0	2
8	Piston	SKFW14-353-03.04	1
9	Combination sealing ring	SKFW14-353-03.07.00	2
10	Wearing ring	FH3570-16	1
11	Housing	SKFW14-353-03.05	1
12	Nut	FH3570-03A	12
13	Stud	FH3570-02	12
14	Wedge block	FH3570-05	12
15	Screw M24×30	GB70-76	12
16	O-ring	FH3570-08	1
17	Combination sealing ring	SKFW14-353-03.06.00	2
18	Wearing ring	FH3570-15	2
19	Lifting eye	FH3570-04	4
20	Screw M36×80	GB70-76	8
21	Shackle	JB8112-1999	4
22	Joint	FH3570-13	4
23	Oil plug	F02-15	4

FZ35-70 SEALS

1

RJ11148.30.00

Rongsheng BOP

2

RS11148.41.00

Rongsheng BOP

3

RS11148.41.03

Rongsheng BOP

4

RS11148.41.02

Rongsheng BOP

5

SFZ1310-13

ShenkaiBOP

6

SFZ1310-14

ShenkaiBOP

7

SFZ1310-18

ShenkaiBOP

8

SFZ1310-19

ShenkaiBOP

9

F03-23

ShenkaiBOP

10

F03-24

ShenkaiBOP

11

SFZ1710.07-00

ShenkaiBOP

12

SFZ1310.-25

ShenkaiBOP

13

SFZ1310-24

ShenkaiBOP

14

SFZ1310-23

ShenkaiBOP

15

SFZ1310-12

ShenkaiBOP
Size

Ram Assembly

Top Seal

Front Seal

C.S.O

11148.09.01

11148.09.10.01.11

11148.09.01.02

2 3/8″

11148.09.09

11148.09.09.02

2 7/8″

11148.09.02

11148.09.02.02

3 1/2″

11148.09.03

11148.09.03.02

4 1/2″

11148.09.04

11148.09.04.02

5″

11148.09.05

11148.09.05.02

5 1/2″

11148.09.06

11148.09.06.02

5 3/4″

11148.09.19

11148.09.19.02

5- 5 1/2″

11148.09.14

11148.09.14.02

6 5/8″

11148.09.11

11148.09.11.02

7″

11148.09.07

11148.09.07.02

7 5/8″

11148.09.15

11148.09.15.02

9 5/8″

11148.09.08

11148.09.08.02

10 3/4″

11148.09.17

11148.09.17.02

3 1/2″-3 1/2″

11148.09.16

11148.09.16.02

2 7/8″-2 7/8″

11148.09.22

11148.09.22.02

2 7/8″～5″

11148.09.18

11148.09.18.01

11148.09.18.02
