FMC Type Plug Valve

FMC Type plug valve

The plug valve is an indispensable part of oil, mine cementing, fracturing operations, and similar high-pressure liquid control. The product has the advantages of a compact structure, convenient maintenance, small torque, fast opening, and convenient operation, so it is the most ideal valve in cementing and fracturing operation.

Plug valve is an essential component in oil and mining cementing and fracturing operations and similar high-pressure fluid control. With a compact structure, easy maintenance, small torque, fast opening, and easy operation, it is the most ideal valve for cementing and fracturing operations.

Both inlet and outlet adopt a 1502 connection (connection can also be made according to customer requirements). The connection between the valve body and the liner card adopts a cylindrical metal type, with high precision and reliable sealing.

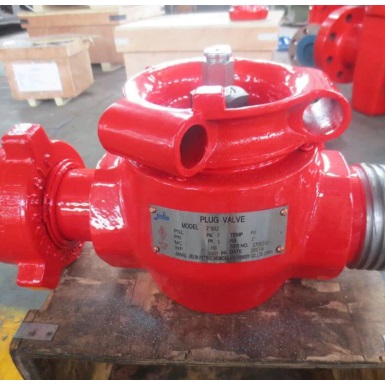

The plug valve is mainly composed of the valve body, hand wheel, plunger, etc. The valve can be easily opened or closed at a pressure of 10,000psi.

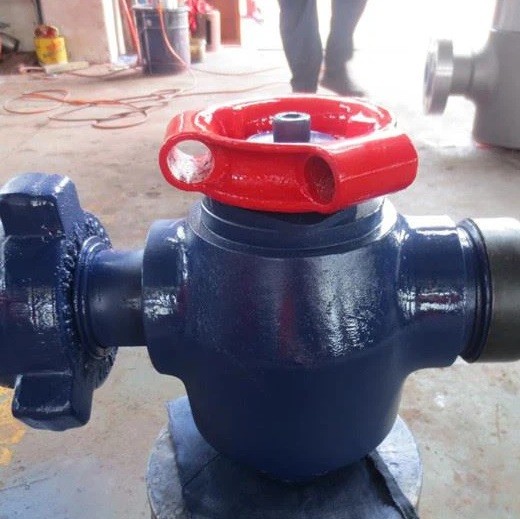

FMC Type Plug Valve

Bore Size: 1in~4in
WP: 5,000psi ~ 20,000 psi
MC: AA, BB, CC, DD, EE, FF
TC: PU, LU
PSL: PSL1 to PSL3
PR: PR1
End Connections: Hammer Union and Thread
Medium: Oil, Gas, Water, etc
Service: Standard, Sour

Halliburton Plug Valve

Plug valves provide flow control for oil field applications, including cementing, fracturing, acidizing, coiled tubing, sand control, and manifold trailers. Plug valves match standard male and female connections and have a standard service level of 15000 psi NSCWP. We have 1-inch, 2-inch, and 3-inch sizes to choose from.

Plug valves provide flow control for oil field applications, including cementing, fracturing, acidizing, coiled tubing, sand control, and manifold trailers. Plug valves match standard male and female connections and have a standard service level of 15000 psi NSCWP. We have 1-inch, 2-inch and 3-inch sizes to choose from.

Details :

Service: standard and sour

Bore (inches)

- standard service: 1", 2", 3"

- sour service: 1", 2", 3"

These valves can be "manual", "gear operated" or "actuated".

End connections：

- HU (602, 1002, 1502, 2202)

- LP

- Flanged

- Other custom connections and lengths
