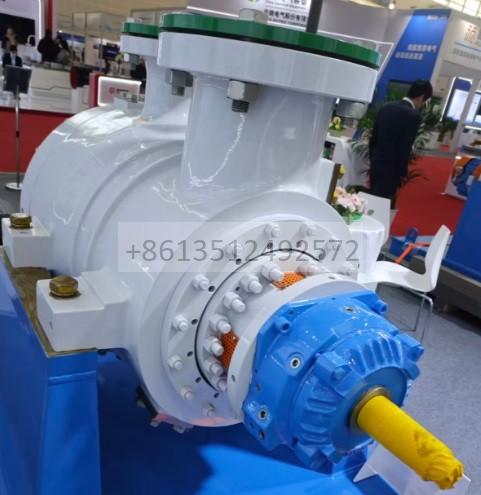

Axially split volute casing pump

Description Axially split volute casing pump for horizontal installation, withone, two or three stages and double-entry radial impeller, mating flanges to DIN, ISO or ANSI.

Description
Horizontal radially split volute casing pump in back pull-outdesign, with radial impeller, singleentrysingle-stage, to DIN EN IS05199, dimensions to DIN EN ISO 2858, complemented bynominaldiameters DN25 and >DN200, in large range of material and sealvariants; also availableas a variant with "wet" shaft and conicalseal chamber.
ApplicationsPumping aggressive, foxic, explosive, valuable, flammable, mal-odorous or harmful liquids in thechemical and petrochemical in-dustries, in refineries, power stations and desalination plantsaswell as in the food industry and general industry.

ApplicationsPumping water with a low solids content, e.g. in waterworks andlong-distance water supply.

DN
Q (m3/h)
H(m)
P(bar)
T(°C)
350-1200≤18000550≤64
≤ +80
Data for 50 Hz operation processes.Also available for 60 Hz
